The ICP Is a Heavy Duty Chemical Process Pump Designed For Extreme Temperatures and Pressures and is Ideal for Chemical, Petrochemical, Hot Water or Heat Transfer Fluid Applications.
Hydraulic Components Comply with ISO 2858 for Easy Integration to Most Process Piping Systems. Mechanical Design In Accordance to ISO 5199 for Extended Reliability.
-Capacities to 450 m3/h (1980 USGPM)
-Heads to 150 m (492 Ft)
-Temperature Range -40°C to 280°C (-40°C F to 535°F)
-Pressures to 25 bar (363 Psig)
-Carbon Steel (1.0619)
-Stainless Steel (1.4408)
-Duplex Stainless Steel (1.4517)
-Hastelloy C (2.4810)
-Chemical Process
-Petrochemical
-Pharmaceutical
-Condensate
-District Heating
-Heat Transfer Fluids
-Rubber & Plastic Manufacturing
-Patented “Cyclone” Seal Chamber Extends Seal Life
-Standard Center-Line Mounted Casing Controls Thermal Growth & Maintains Pump Alignment for Extended Bearing Life
-Large Capacity Oil Sump Improves Oil Cooling for Extended Bearing Life
-Optional Inducer Reduces NPSHr, Ideal for Marginal NPSH Applications
-Back Pull Out Design Simplifies Maintenance Activities
-Modular Interchangeability with IC Pump Reduces Spare Parts Inventories
-Optional Wear Rings Renew Pump Performance and Extend Pump Life
Heavy Duty Casing
-Centerline Mounted Design Controls Thermal Growth and Maintains Pumps Alignment for Extended Bearing Life
-Heavy Duty Design Meets ISO 5199 Nozzle Loading Criterion
-Minimum 3 mm Corrosion Allowance Maximizes Pump Life
-Standard 3/8”-NPT Casing Drain For Safe and Simple Maintenance
Engineered Seal Chamber
-Patented “Cyclone” Seal Chamber Keeps Solids and Vapors Out Of the Seal Area for Extended Seal Life
-Tapered Bore Design Enhances Lubrication and Cooling of Seal Faces Often Eliminating the Need for External Flush Connections
-Can Be Fitted With Standard DIN 24960 L1k Seals or Cartridge Seals
Heavy Duty Bearing Bracket
-Large Capacity Oil Sump Increases Oil Cooling for Increased Bearing Life
-Rigid Shaft Designed to Limit Shaft Deflections to less than 0,05 mm for Reliable Shaft Sealing
-Heavy Duty, Double Angular Contact Bearings Designed for L 10 Bearing Lives in Excess of 17.500 hours
-Standard Stainless Steel Shaft (1.4021) for Reliable, Corrosion Resistant Power Transmission

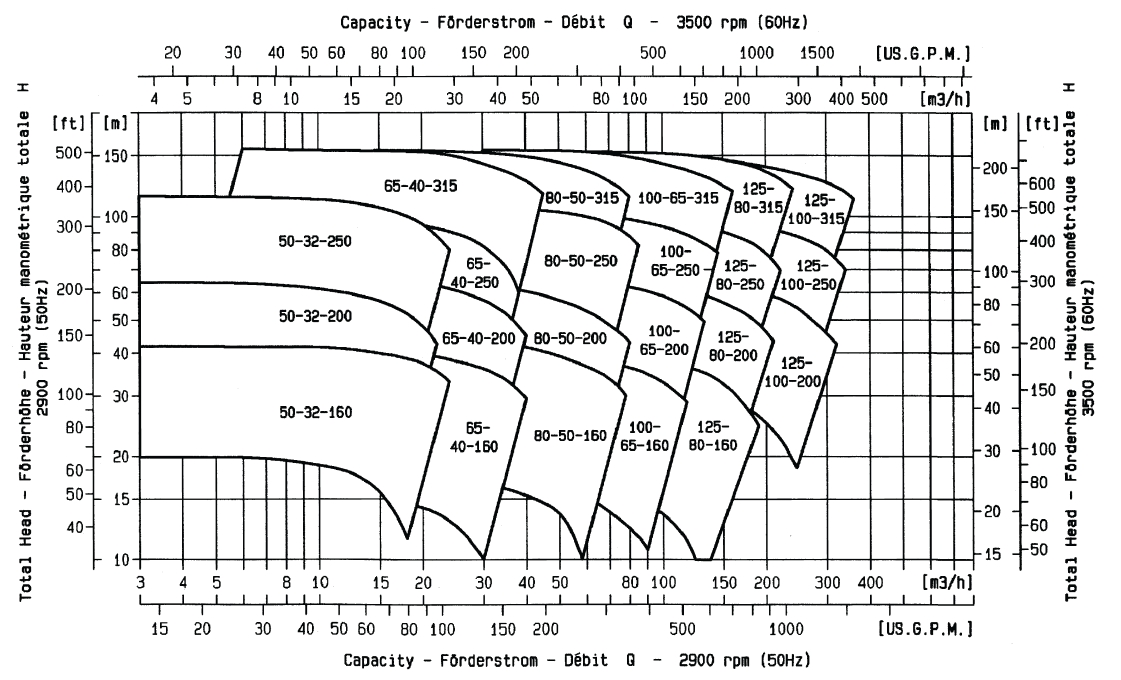

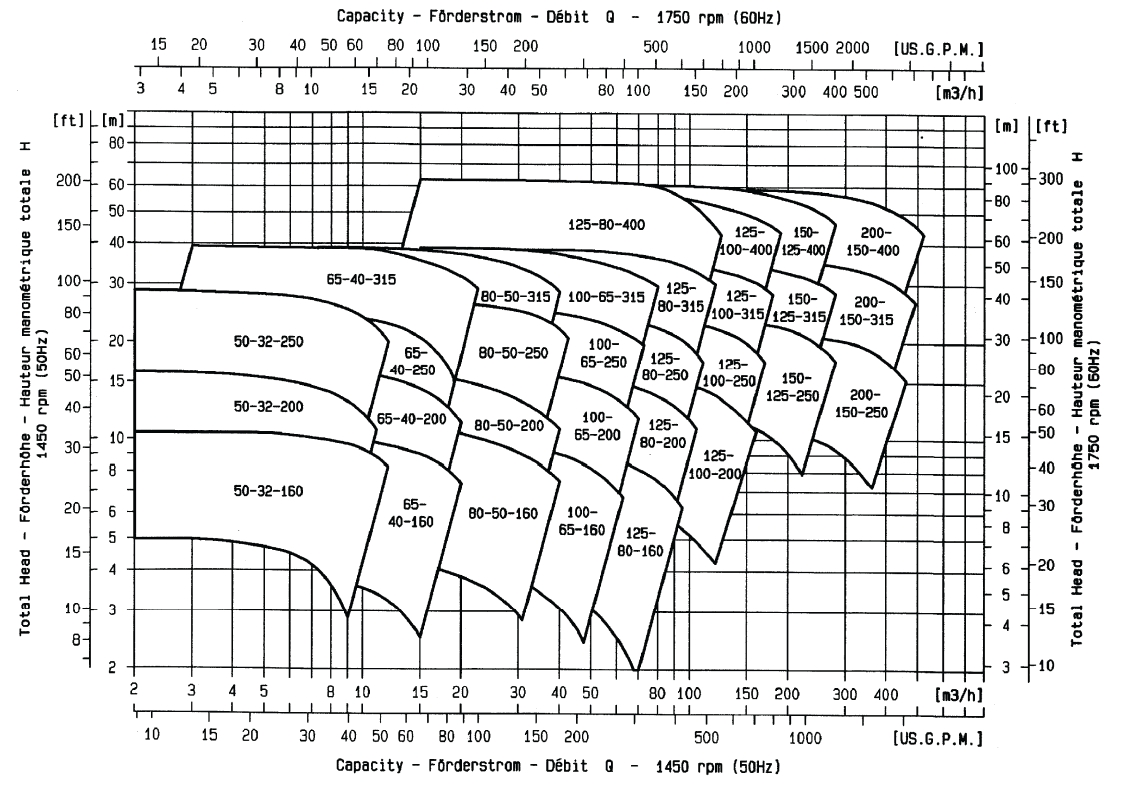

Performance
