Hydro-solids pumps. Recessed impeller easily accomodates large, stringy and fibrous solids without clogging. Because it is completely submersible, the HSU can be used in virtually any sump application.
-Capacities to 295 m³/h (1,300 USgpm)
-Heads to 27 m (90 feet)
-Temperature Range 90°C (194°F)
-Pressures to 690 kPa (100 PSIG)
-Solids to 152 mm (6 in)
Solids Type
Will handle large, stringy, fibrous and abrasive solids.
Materials
-Cast Iron
-28% Chrome Iron (HC600)
-CD4MCu
-316 Stainless Steel
Features
-Recessed Impeller
-Concentric Casing
-Integral Support
-Heavy Duty Adapter
-Integral Discharge Elbow
Submersible recessed impeller pumps easily handle any solid up to its suction/discharge size. Versatile mounting allows pump to stand or to be mounted on an optional slide rail arrangement.
-Capacities to 636 m³/h (2,800 USgpm)
-Heads to 43 m (140 feet)
-Temperature Range 90°C (194°F)
-Pressures to 690 kPa (100 PSIG)
-Solids to 152 mm (6 in)
Solids Type
Will handle large, stringy, fibrous and abrasive solids.
Materials
-Cast Iron
-28% Chrome Iron (HC600)
-CD4MCu
-316 Stainless Steel
Features
-Recessed Impeller
-Concentric Casing
-Flanged Suction and Discharge
-Interchangeability with Horizontal & Vertical Models
-Mounting Flexibility
Submersible pumps for handling tough abrasive slurries. Impeller design offers optimum combination of solids handling ability, wear resistance, and efficiency. Optional slide rail assembly available for ease of maintenance.
-Capacities to 910 m³/h (4,000 USgpm)
-Heads to 67 m (220 feet)
-Temperature Range 90°C (194°F)
-Pressures to 1,380 kPa (200 PSIG)
-Solids to 152 mm (2 in)
Solids Type
Will handle all types of abrasive solids
Materials
-Cast Iron
-28% Chrome Iron (HC600)
-CD4MCu
-316 Stainless Steel
Features
-Heavy Duty Slurry Design
-Replaceable Suction Liner
-Integral Strainer
-Mounting Flexibility
-Interchangeability with Horizontal & Vertical Models
Submersible Hydro-Solids Pumps
Designed to handle large, stringy, fibrous and abrasive solids
Services
-Waste Treatment Plants
-General Service Sumps
-Sewage Wet Wells
-Reclaim Sumps
-Power Plants
-Industrial Waste Sumps
-Sludge Pits
-Drainage Sumps
-Collection Basins
-Wood Yard Sumps
Design Features
1. Fully Recessed Impeller Allows large stringy or fibrous material to pass through the pumps without binding or clogging.
2 .Concentric Casing Concentric design facilitates flow of pumpage and solids through the pump while minimizing loads.
3. Integral Support Three cast-in legs provide simple, stable support without additiona parts.
4. Heavy-Duty Motor Adaptor Extra thick in critical areas. Extended shroud encircles impeller and protects casing from wear.
5. Integral Discharge Elbow Cast-in elbow reduces parts and allows easy installation.
What Goes In — Goes Out!
Unlike self-priming trash pumps or some other submersibles or vertical pumps, the HSU will pump any solid that enters its suction without clogging. This includes such hard to pump items as rags and string. Avoid costly downtime unplugging your pump with Goulds HSU.
Submersible Hydro-Solids Pumps
Designed to handle large, stringy and abrasive solids
Services
-Waste Treatment Plants
-General Service Sumps
-Sewage Wet Wells
-Reclaim Sumps
-Power Plants
-Industrial Waste Sumps
-Sludge Pits
-Drainage Sumps
-Collection Basins
-Wood Yard Sumps
Design Features
1. Fully Recessed Impeller Allows large stringy or fibrous material to pass through the pumps without binding or clogging.
2. Concentric Casing Concentric design facilitates flow of pumpage and solids through the pump while minimizing loads.
3. Legs Bolt-on legs provide stability on sump floor. 4. Mounting Flexibility Flanged suction and horizontal discharge allow pump to stand or be mounted on optional slide rail.
5. Interchangeability Reduce inventory by sharing parts with Horizontal HS pumps & Vertical Cantilever VHS pumps.
Heavy Duty Submersible Slurry Pumps
Designed to handle abrasive sump applications
Services
-Fly Ash
-Sand and Gravel
-Chemical Waste Sumps
-Dirty Water Sumps
-Foundry Sand
-Bauxite
-Lime Sumps
-Kaolin Clay
-Mill Scale
-Sludge Pits
Design Features
1. Heavy Duty Design Extra thick wall sections in high wear areas.
2. Replaceable Suction Liner Easy to replace – protects casing from wear.
3. Suction Cover Bell shaped intake reduces entrance losses and improves suction characteristics.
4. Integral Strainer Suction cover has cas-on vertical tines to prohibit oversized solids from clogging pump.
5. Pump Mounting Three cast-on legs give excellent support and stability. Optional slide rail also available to permit easy removal from sump.
6. Maximum Interchangeability Suction Cover liner and casing are interchangeable with Goulds Models JC (horizontal) and VJC (vertical cantilever) pumps.
Discharge Head
Patented “O” Head design provides consistent flow and eliminates potential resonance frequencies through a comprehensive Finite Element Analysis.
Impeller
Optimum hydraulic balance conditions achieved by eliminating balance holes. Prototypes developed from geometrically similar model impellers, tested to ensure peak performance in the field.
Wear Rings
Reduce downtime and costly repairs with addition of this option on the impeller and diffuser/suction bell. Wear rings are made of hardened alloys and easily replaceable to renew design-running clearances.
Diffuser
Recover the velocity head by straightening the flow of the impeller with this carefully crafted element.
Suction Bell
Separately cast, precision component, provides a smooth flow to the impeller eye, with minimized submergence requirements.
Column and Elbow
Column pipe is fabricated in discrete sections to provide intermediate guide bearings required. Elbow can be arranged for either above or below floor discharge required on specific applications.
Computational Fluid Dynamic Analysis
Determines the sump flow conditions at the pump inlet for superior pump performance.
Critical Speed Analysis
Ensures that the first critical speed is well above the maximum operating speed of the pump.
Mechanical Design Analysis
Defines the proper shaft size and configuration along with other critical design features.
Model Test Data
Validates geometrical similarity between pump models and full-size pumps. Aids in casting, fabrication, machining and inspection in pump manufacturing. No need for costly fullsize testing.
Start-Up Analysis
Identifies the optimal starting sequence between the pump, driver and discharge valve. Determines ability of pump to start under adverse conditions.
Pump Quality
Inspection of all pump components and assemblies to ensure reliable operation, meeting the standards of the Hydraulic Institute.
-Power generation cooling (main, intermediate and secondary water circulation)
-Condenser cooling with maximum efficiency
-Desalination sea water intake across the globe
-Flood protection in storm ravaged areas
-Waste treatment plants (industrial and municipal)
-Industrial services including descaling, cooling, quench process, fire protection and API services
-Cantilever impeller design eliminates the tail bearing and lowers NPSH values. This improves fluid inlet conditions and hydraulic performance.
-Want added stability? We support the upper bearing above the first stage impeller by adding an extra length or double bearing.
Shaft
Transmits maximum power at well below the pumps’ first critical speed. Strict control of shaft straightness provides dependable operation and longer service life.
Shaft Sleeves
Optional feature at all bearing sleeves and at the stuffing box locations. This hardened alloy alternative protects the shaft and extends service life. Designed for easy replacement and maintenance.
Bearings
Protected from high pressure pumpage and contaminants, our bearings are isolated inside enclosing tubes in the column pipe as an alternative. A separate, clean fluid source lubricates bearings and seals, causing less abrasion and wear.
Intermediate Coupling
This transmission of power and rotation through the shaft is driven by coupling keys. Thrust loads are transmitted through the split ring design.
Rigid Adjustable Drive Coupling
Coupling keys and split thrust ring design transmit the torque, hydraulic thrust and pump rotating weight to the driver. Also provides clearance adjustment between the wear rings.
Stuffing Box
Packed with flexible graphite material to reduce resistance and prolong shaft service life. A split gland simplifies packing adjustment and replacement.
-Gone are the headaches of disconnecting and reconnecting pumps from bulky, below-grade discharge pipes
-Our “Pull-Out” option allows easy removal of the inner element of the pump for maintenance, eliminating the need to drain or enter the pump.
-Suction bell, column, discharge elbow and discharge piping are not disturbed. Downtime and repair costs are greatly reduced when worn parts are replaced, restoring system efficiency.
-Sliding and conical fit ensure proper alignment upon reassembly.
-Available on all ITT Goulds Pumps’ Vertical Pump models. Column size for a given capacity is not affected by “Pull-Out” design, with no loss in pumping performance.
-Our shaft enclosing tube insulates the shaft from the pump fluid and provides a passage for bearing lubrication.
-One end of the shaft tube has an O-ring sliding fit for thermal expansion. Easy to disassemble and reinstall.
-Goulds Pumps Engineering utilizes sophisticated 3D design tools to create scalable models of every custom pump. Each model undergoes extensive testing to optimize it for specific hydraulic applications.
-Other hydraulic enhancements include a Suction Bell with flared inlet controls to accelerate fluid to the desired inlet velocity.
-Outer walls on the bowls provide structural integrity, with flange fits located at each end for positive alignment.
-The contour of the diffuser/bowl provides accurate fit to the impeller, maximizing operating efficiency.

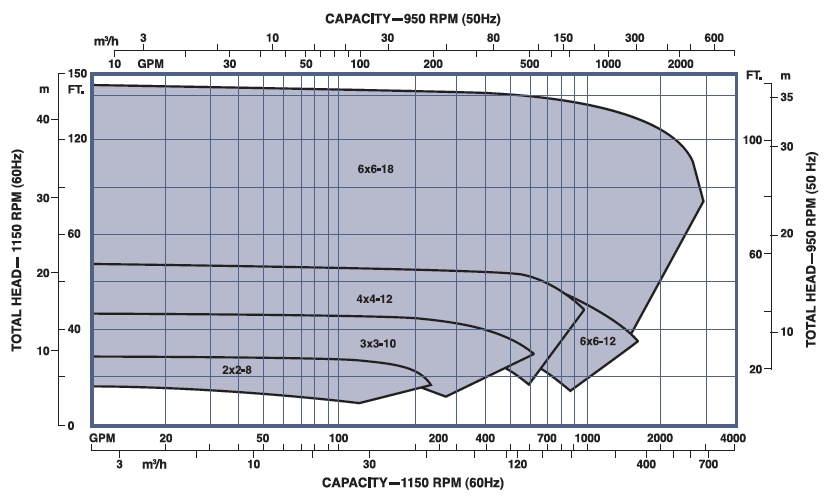

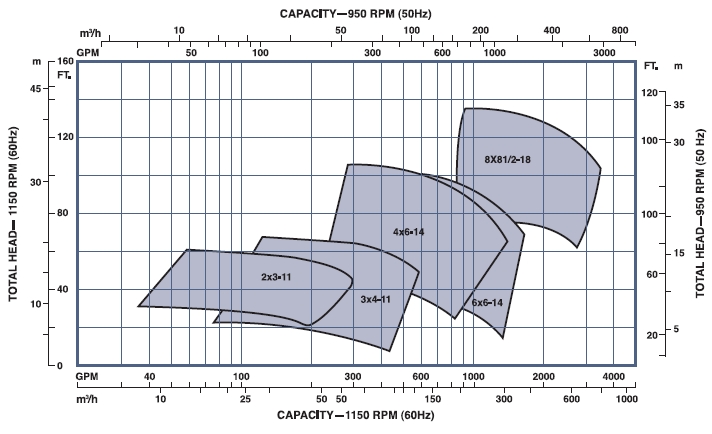

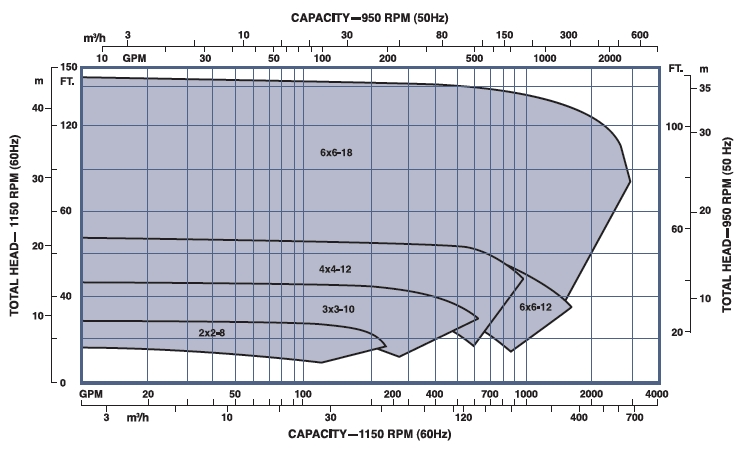

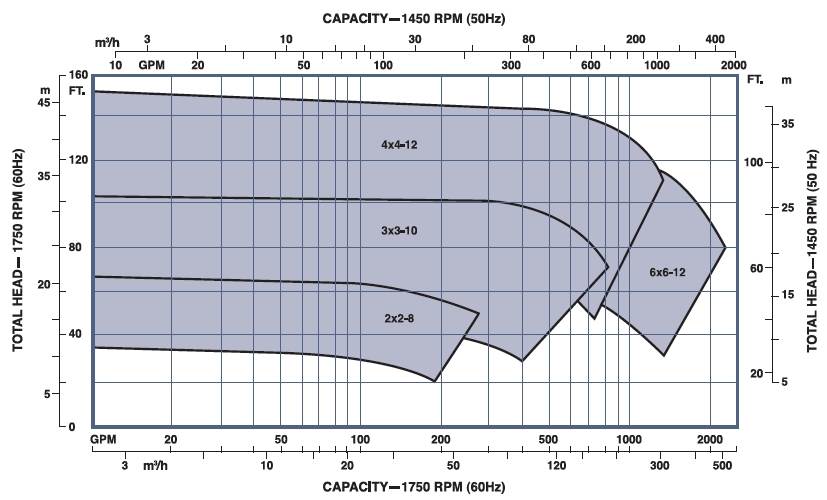

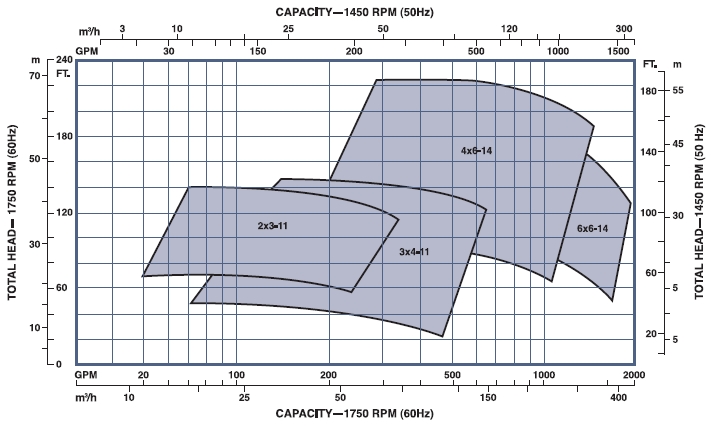

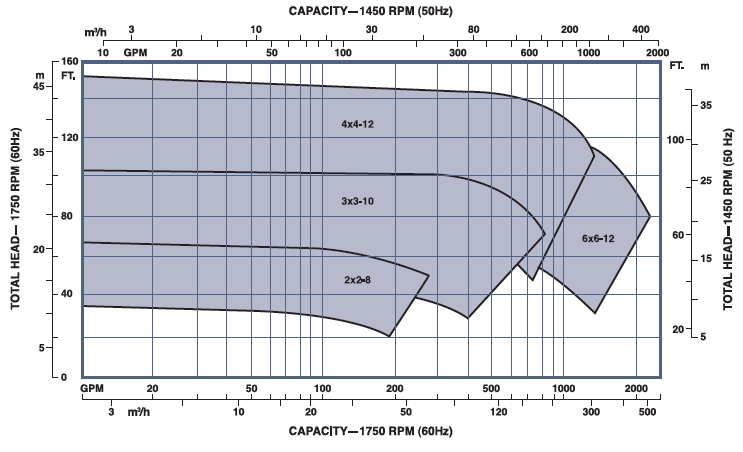

Range Chart
