Designed for optimum reliability. State-of-the-art mechanical design features. 5 casing sizes and 10 hydraulics each with most casings.
Safety, reliability and versatility are the key words for our end-suction, centerline-mounted, overhung (OH-2) API 610 process pump.
We provide engineered solutions with true conformance to the latest API specifications including the stringent emissions containment per API 682. The result is a safe and rugged overhung API process pump designed for a 20-year life.
-Capacity to 390 GPM (88 m3/h)
-Total dynamic head to 1650 feet (503 m)
-Temperature to 800˚ F (425˚ C)
-Pressure to 1100 PSIG (75 bar)
TANGENTIAL DISCHARGE DESIGN
Maximizes hydraulic efficiency.
CONFINED CONTROLLED-COMPRESSION GASKETS
Spiral-wound gaskets assures positive sealing with no chance of misalignment for casing and insert.
NOZZLE LOAD CAPABILITY
Casing/baseplate design optimized to exceed toughest API/ISO nozzle load criteria.
INTEGRAL CASE FLANGES
Drain (std) & Vent (optional) connection.
HYBRID LABYRINTH SEALS
Prevents premature bearing failure caused by lubricant contamination or loss of oil. Made from non sparking metal.
RIGID, HEAVY-DUTY SHAFT
Minimizes shaft deflection, maximizes bearing and mechanical seal life.
CIRCULAR VOLUTE CASING
Reduces radial loads during low flow operation. Mechanical seal and bearings last longer. Fully machined discharge and volute provide maximum efficiency and precise control of hydraulics at low flows.
HYBRID LABYRINTH SEALS
Prevents premature bearing failure caused by lubricant contamination or loss of oil. Made from non sparking metal.
BEARINGS
Duplex 40° angular contact thrust bearings and deep-groove (Conrad) radial bearings sized for minimum three-year bearing life under most severe operating conditions. Exceeds API 610 / ISO 13709 requirements.
HEAVY-DUTY BEARING FRAME
Piloted and metal-to-metal fits assure runouts and concentricities well within limits specified in API 610 / ISO 13709. Large oil sump capacity. Cast fins enhance cooling.
API-682 SEAL CHAMBER
Enlarged seal chamber fully conformsto API-610 / ISO 13709 standards. Accepts wide range of API-682 / ISO 21049 cartridge mechanical seals. Renewable throat bushing standard for controlled seal chamber environment.
LUBRICATION SYSTEM
Proven, engineered ring-oiled flow-through bearing lubrication optimizes MTBPM.

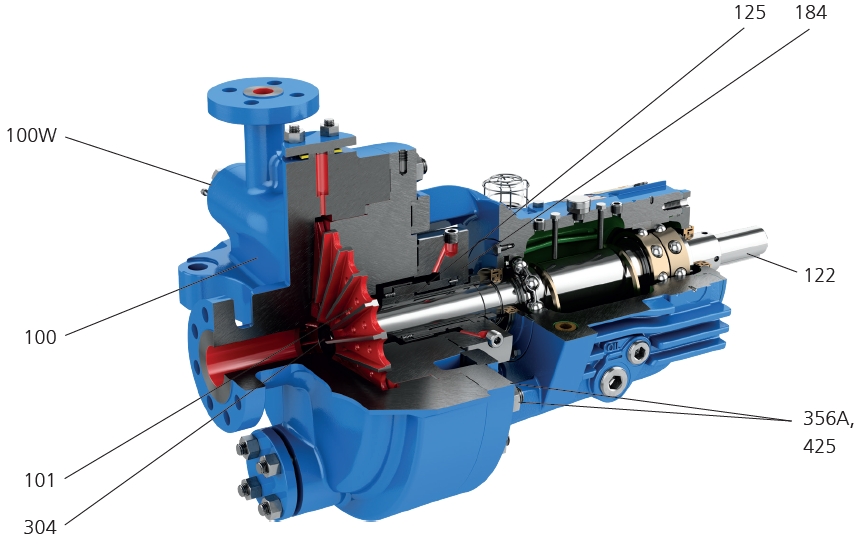

Sectional View

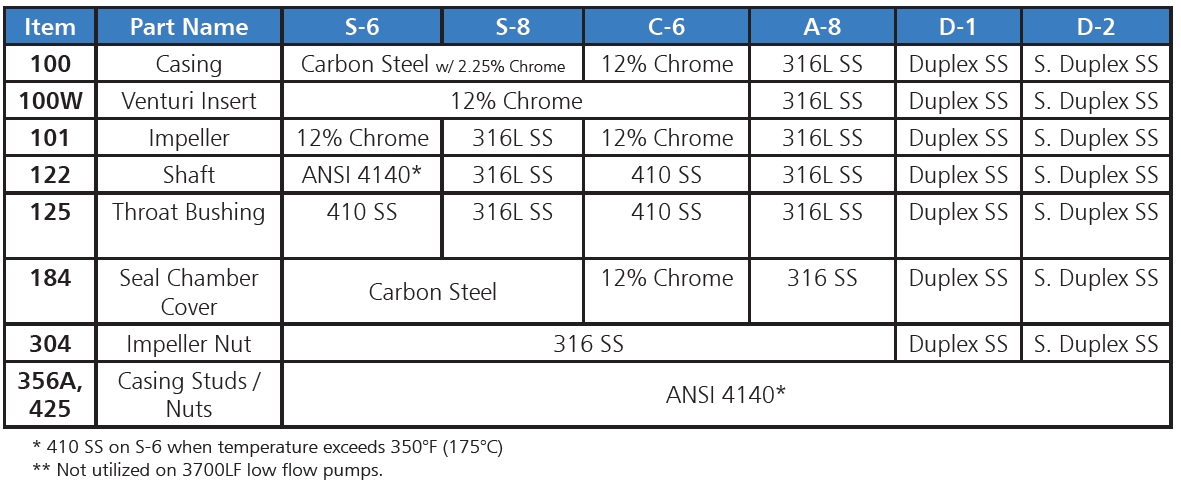

Parts List and Materials of Construction

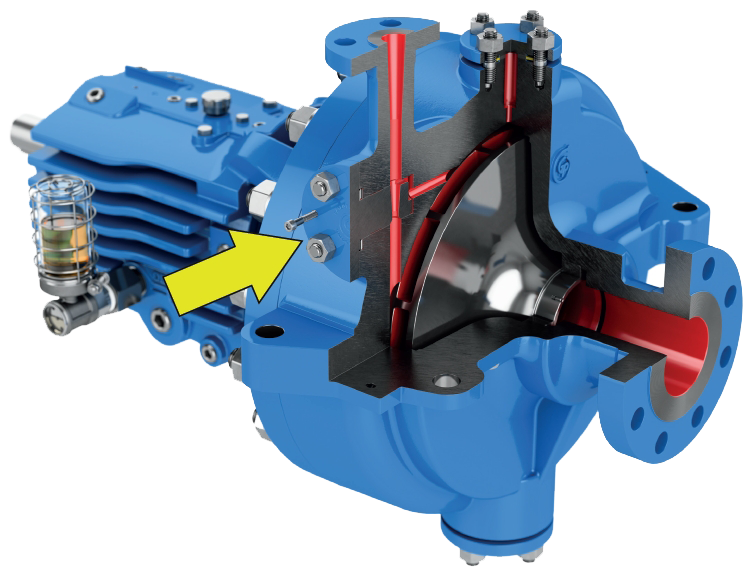

In order to improve serviceability and elevate manufacturing tolerances, pumps within the 3700i family use a replaceable venturi insert. The geometry of this insert is similar to the machining contained in earlier editions of the venturi-style 3700 pumps. The removeable nature allows for fine tuning of the pump performance and optimizes effieciency. This insert can also be replaced during an overhaul to restore pump performance to as new codition, and the pump can even be re-rated with a simple insert change.
