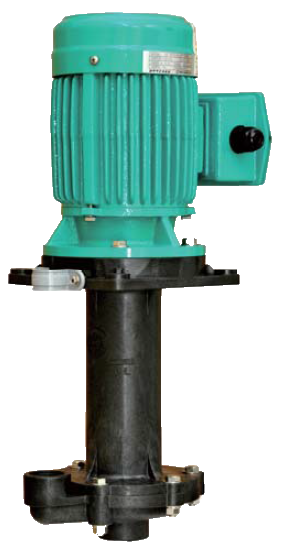

WCC Vertical Sealless Pump YD-20YOVK1 series

-It Is Fully Compatible With Our YD-20LO-E Model.

-High Corrosion And Heat Resistance To Adopte CFR PP As Main Material.

-Sealles Structure Reduced Heat & Abrasion Troubles.

-It Is Easily Changed To A In Tank Pump By Removing A Discharge Loose Flange!

-When Installing A Pump In A Tank, It Is Available To Use Plastic Bolts.

Use

-To Circulate Liquid In Gold Plating Equipment

-To Circulate Liquid In Various Type Of Plating Equipment

-To Circulate Liquid In A Small Scrabber

-To Agitate Chemical Liquid

-Tp Circulate / Transfer Liquid In A Reaction Tank

Specification

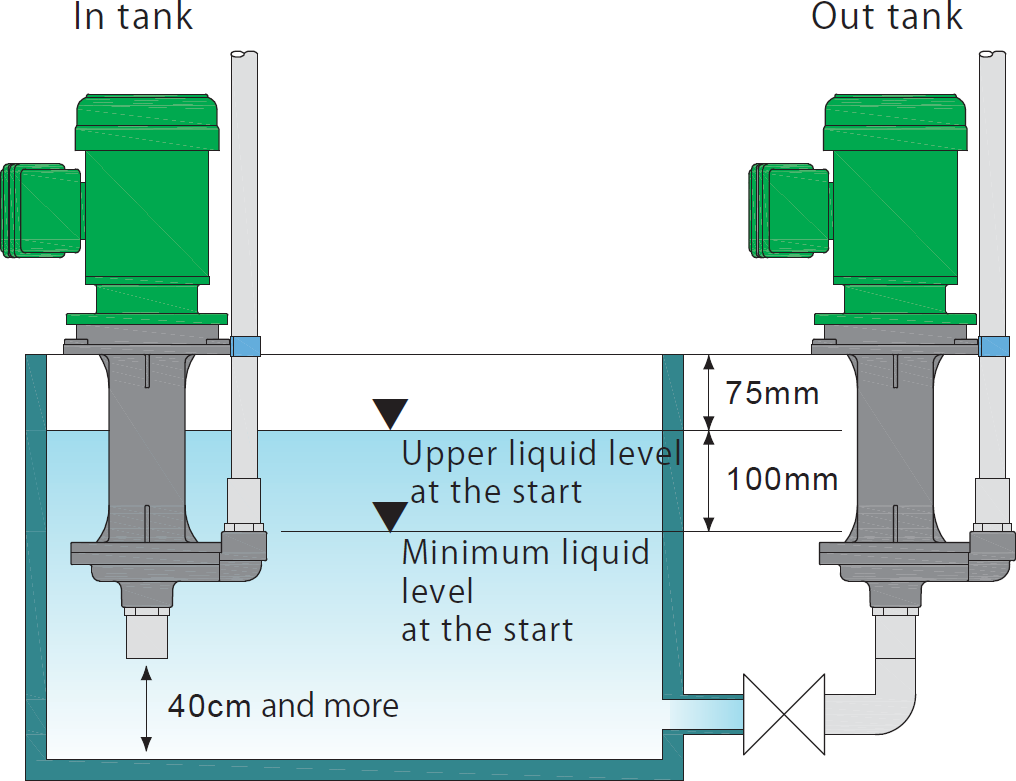

Example of Installation

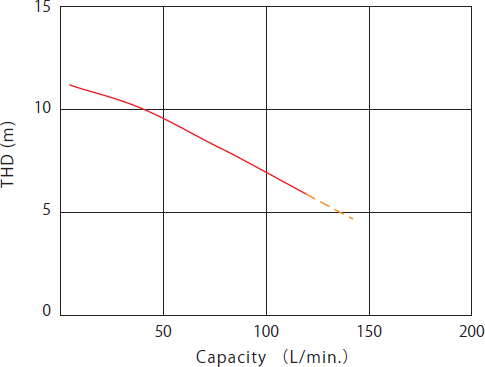

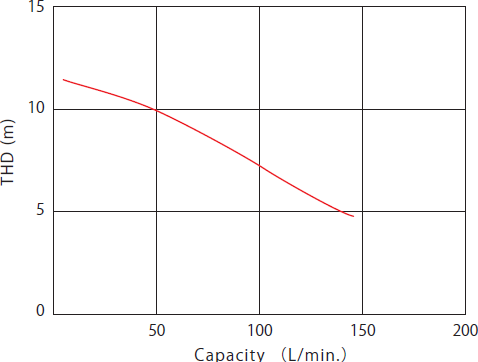

Performance Curve

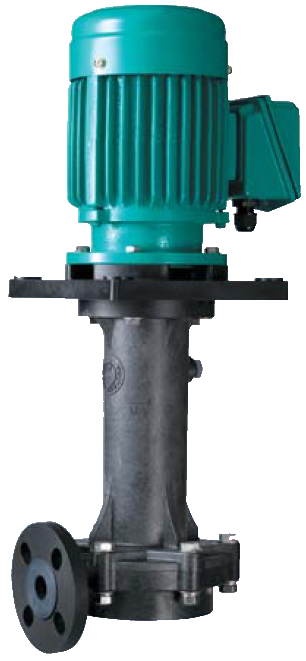

WCC Vertical Sealless Pump YD-2500VK1 series

-It Is Fully Com Patible With Our YD-25LO-E Model.

-High Corrosion And Heat Resistance To Adopte CFR PP As Main Material.

-Sealles Structure Reduced Heat & Abrasion Troubles.

-It Is Acceptable For Liuqid With A Little Slurry!

-It Is Easily Changed To A In Tank Pump By Removing A Discharge Loose Flange!

-When Installing A Pump In A Tank, It Is Available To Use Plastic Bolts.

Use

-To Circulate Liquid In Gold Plating Equipment

-To Circulate Liquid In Various Type Of Plating Equipment

-To Circulate Liquid In A Small Scrabber

-To Agitate Chemical Liquid

-Tp Circulate / Transfer Liquid In A Reaction Tank

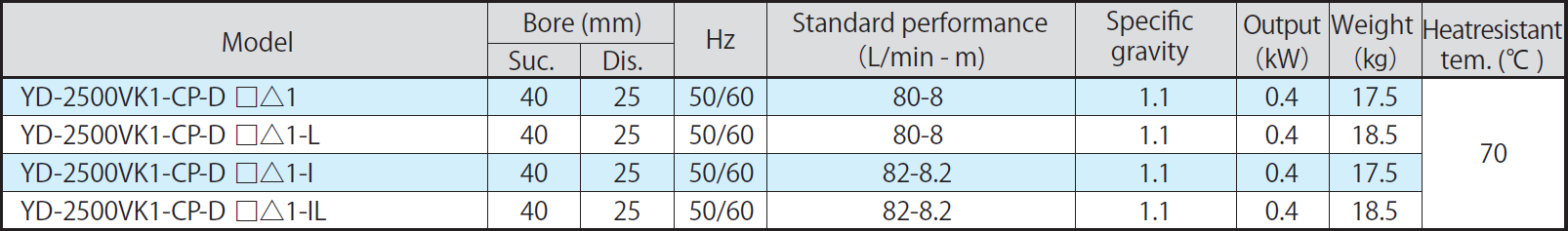

Specification

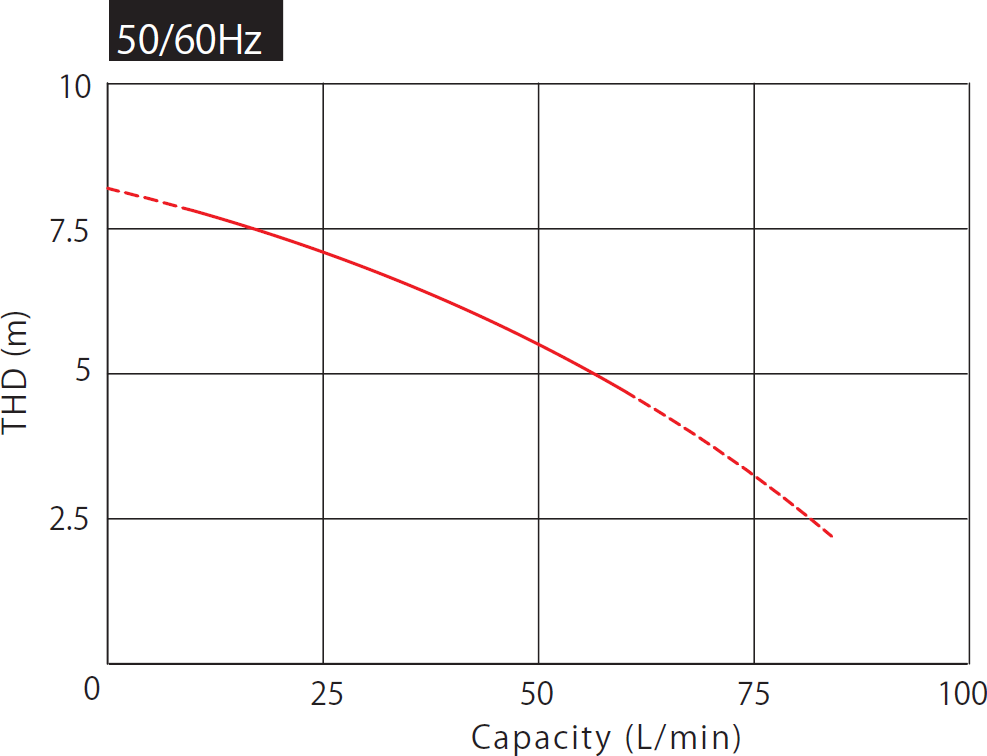

Performance Curve

VK VP series

-No Welded Parts To Cast Of The Casing And No Liquid Leakage.

-When Installing The Pump In A Tank, Possible To Change To Plastic Bolts.

-High Corrosion And Heat Resistance To Adopte CFR PP As Main Material.

-Sealles Structure Reduced Heat & Abrasion Troubles.

-Light Original Motor, Aluminium Frame And Plastic Base Are Adopted For Weight Saving.

-Dry Seal Is Adopted As Standard For Measures Against Gas.

Use

-For Etching (Spray)

-For A Scrabber

-For A Reaction Tank

-To Circulate Plating Liquid

-To Transfer Chemical Liquid

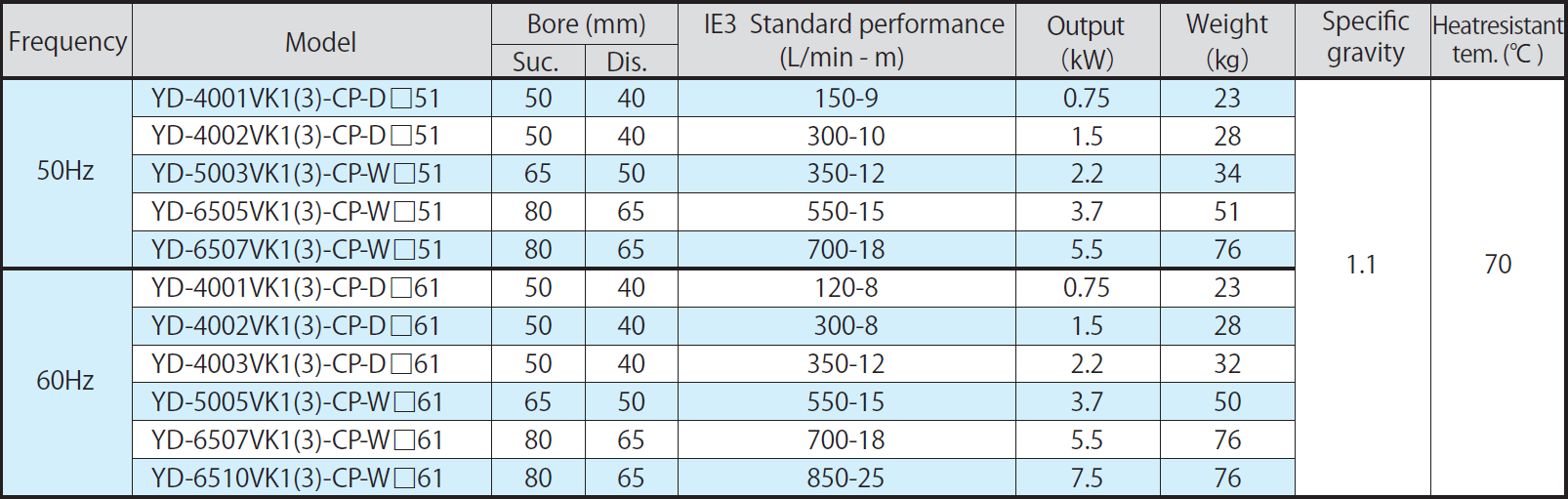

Specification VK3

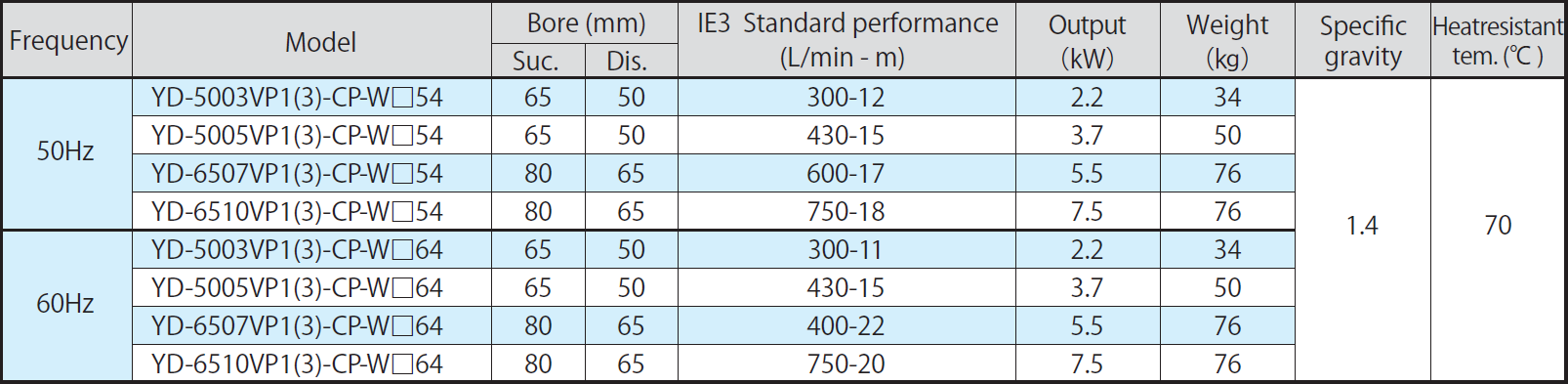

Specification VP3

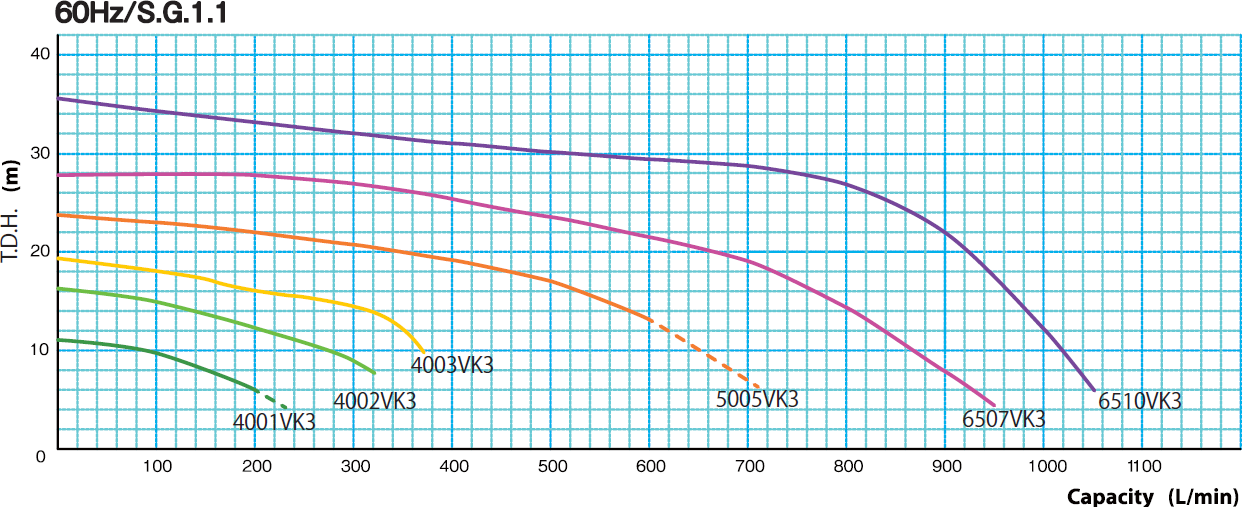

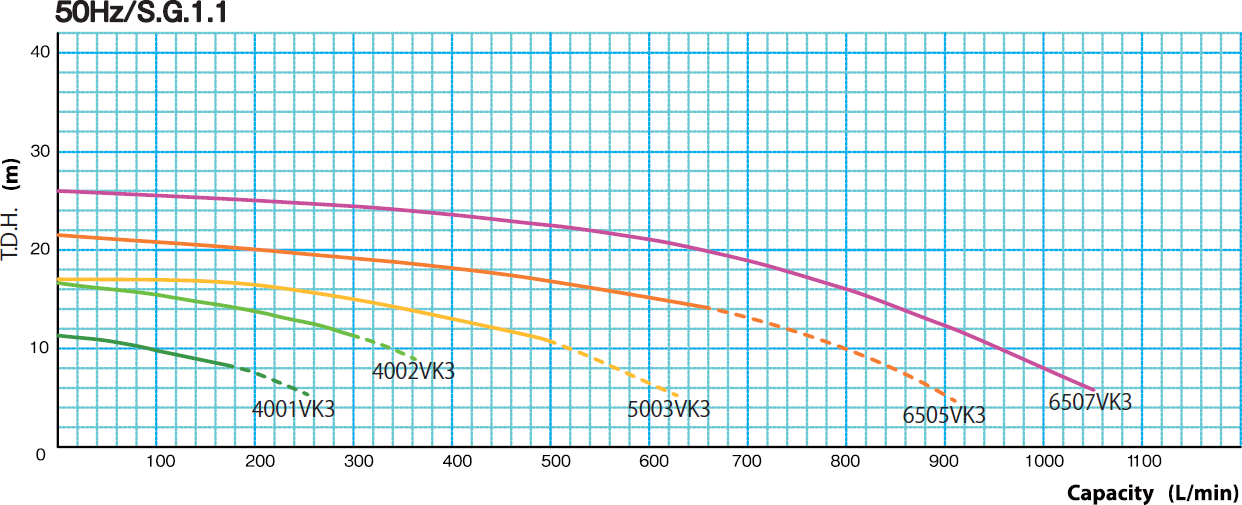

Performance Curve VK3

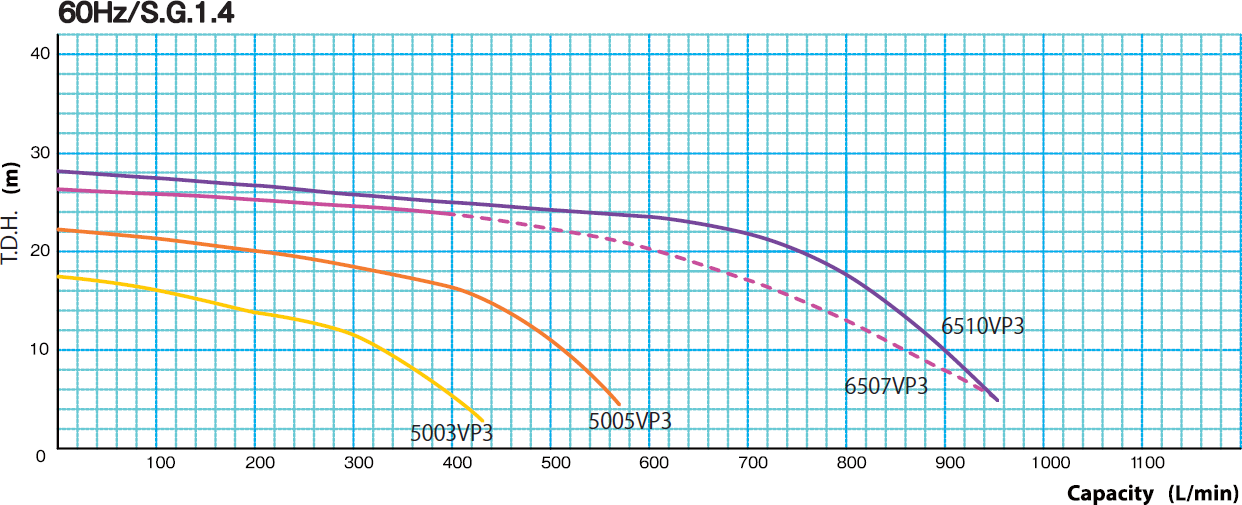

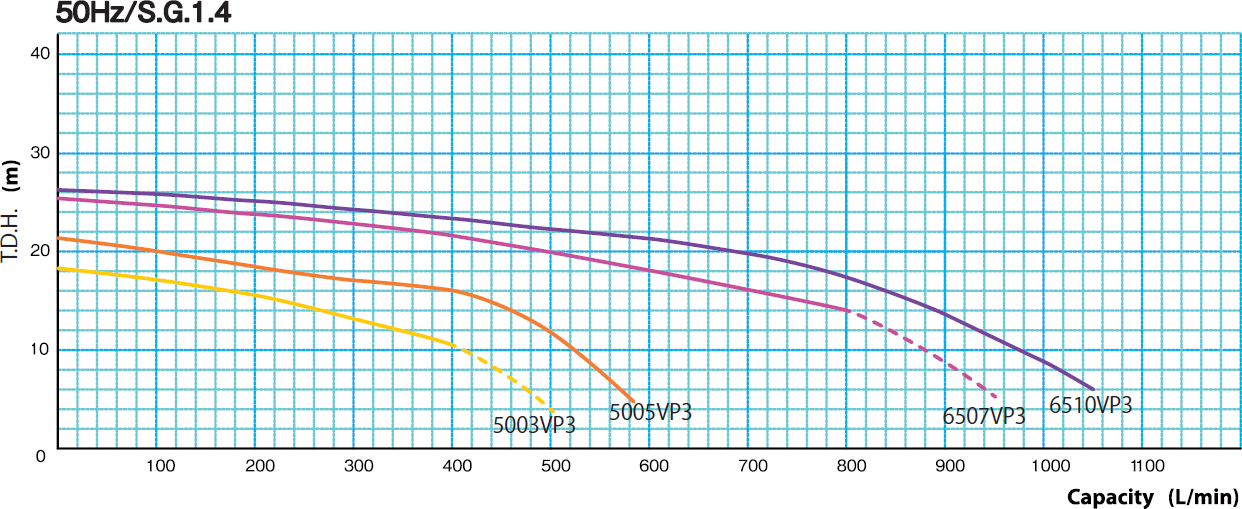

Performance Curve VP3
