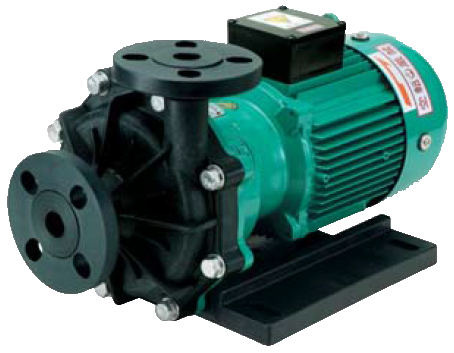

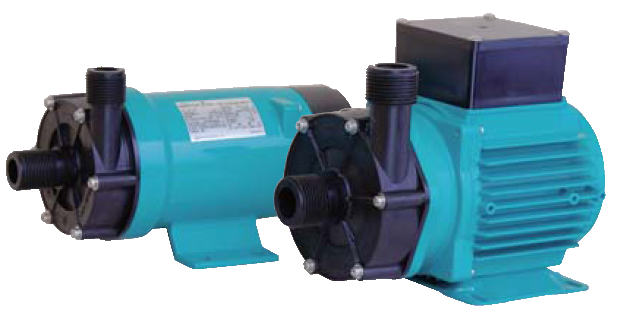

WCC Magnet Drive Pump YD-GS GSF 300 Series
Features

-Low Power Consumption Is Achieved For Motor Efficiency.

-50/60Hz In Common Use.

-Terminal Box On The Motor Is Adopted For Easy Wiring.

-Small And Light Design.

-Fluoro-Rubber (FKM) O-Ring Is Standard.

USE

-For rinse at plating equipment

-For circulation at draft chamber

-For circulation at small scrubber

-For transferring chemical / waste liquid

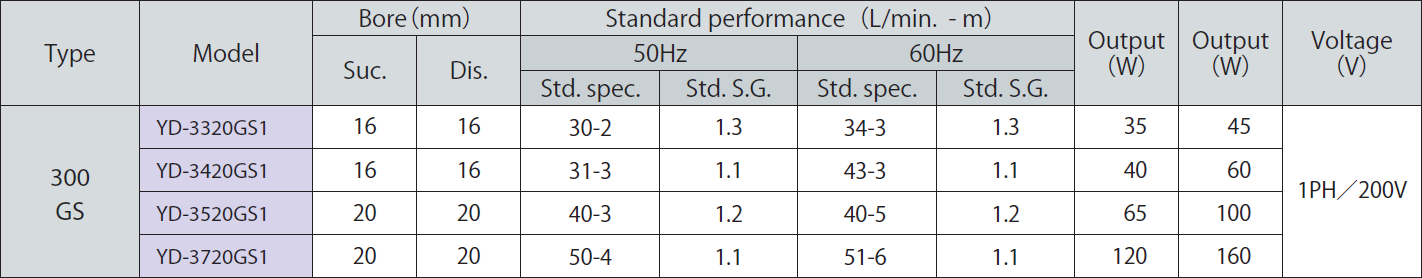

Specification
Dimension
Standard Performance

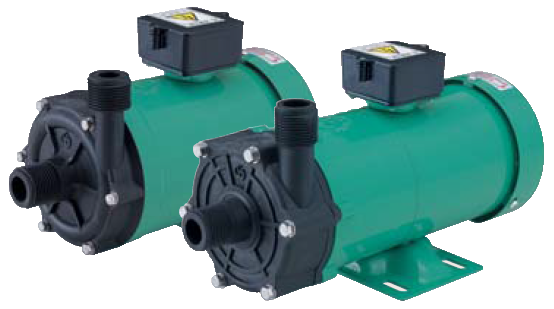

WCC Magnet Drive Pump YD-GS GSF 16/20 Series

Features

-Our original designed impeller is efficient.

-Low price is achieved while enhancing durability.

-YD-GSF series (ETFE) is available for specific gravity until 1.9.

-Our original motor is adopted to increase durability.

-The motor has a terminal box as standard.

-Oil seal is installed to prevent invasion by gas or mist.

-Thermal protector is incorporated to prevent overload operation.

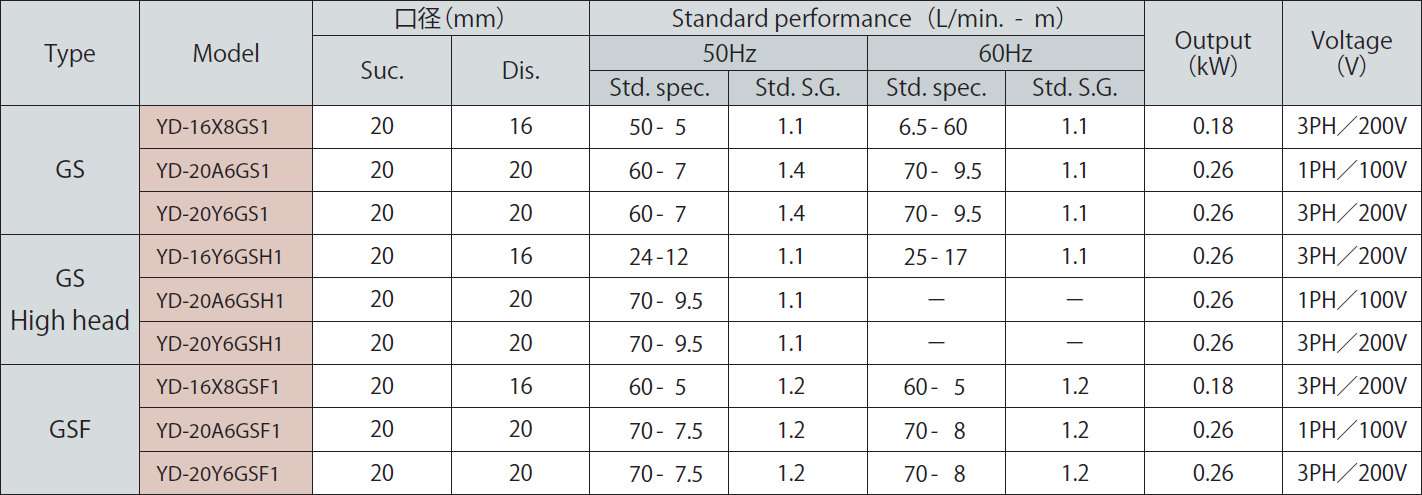

Specification

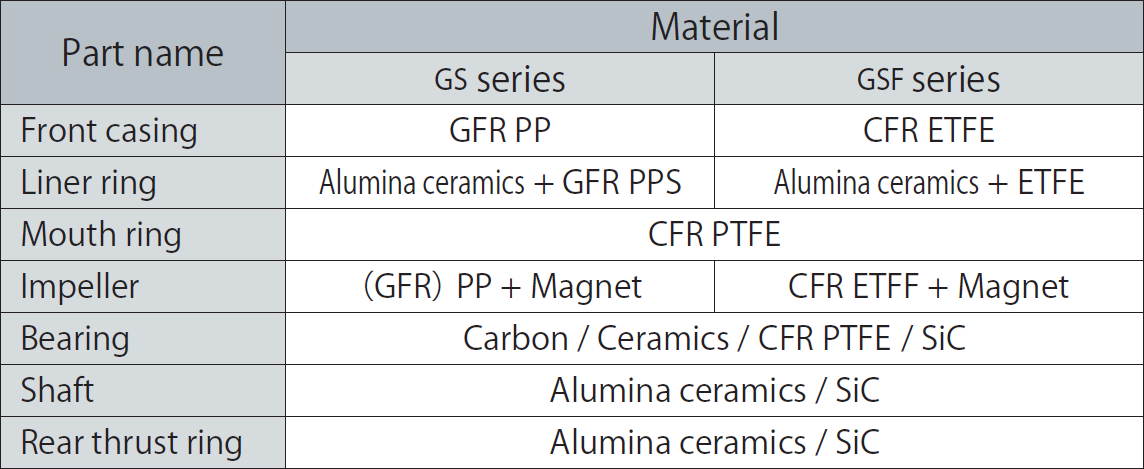

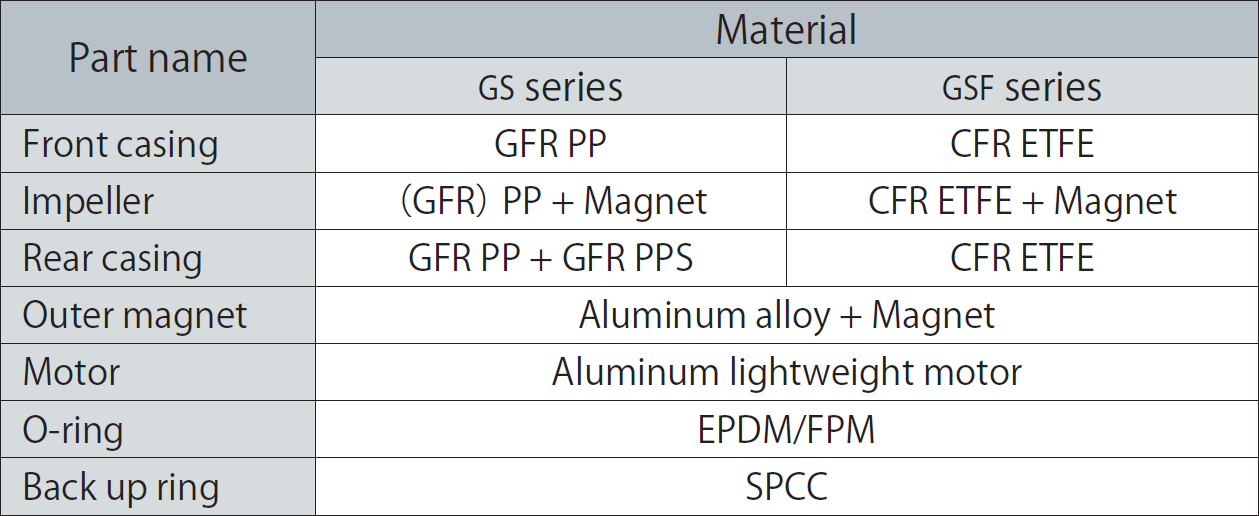

Material
Dimension
Standard Performance Small GS Series
Standard Performance Small GSH Serie
Standard Performance Small GSF Series

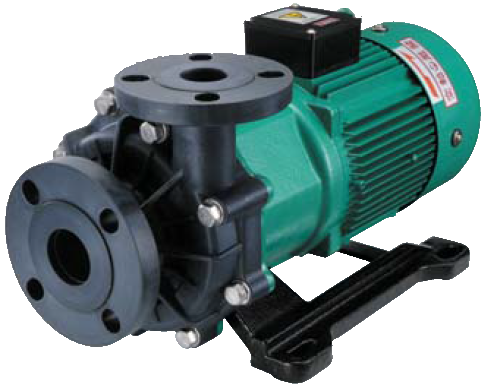

WCC Magnet Drive Pump YD-GS GSF 2500/4000 Series

2500 Series Features

Lineup To Bore 25A

It Is Suitalbe For High Pressure Water Rinse.

IE3 Motor Is The Same Size & Weight As Before.

4000 Series Features

Small Footprint

High Head Magnet Drive Pump

IE3 Motor Is The Same Size & Weight As Before.

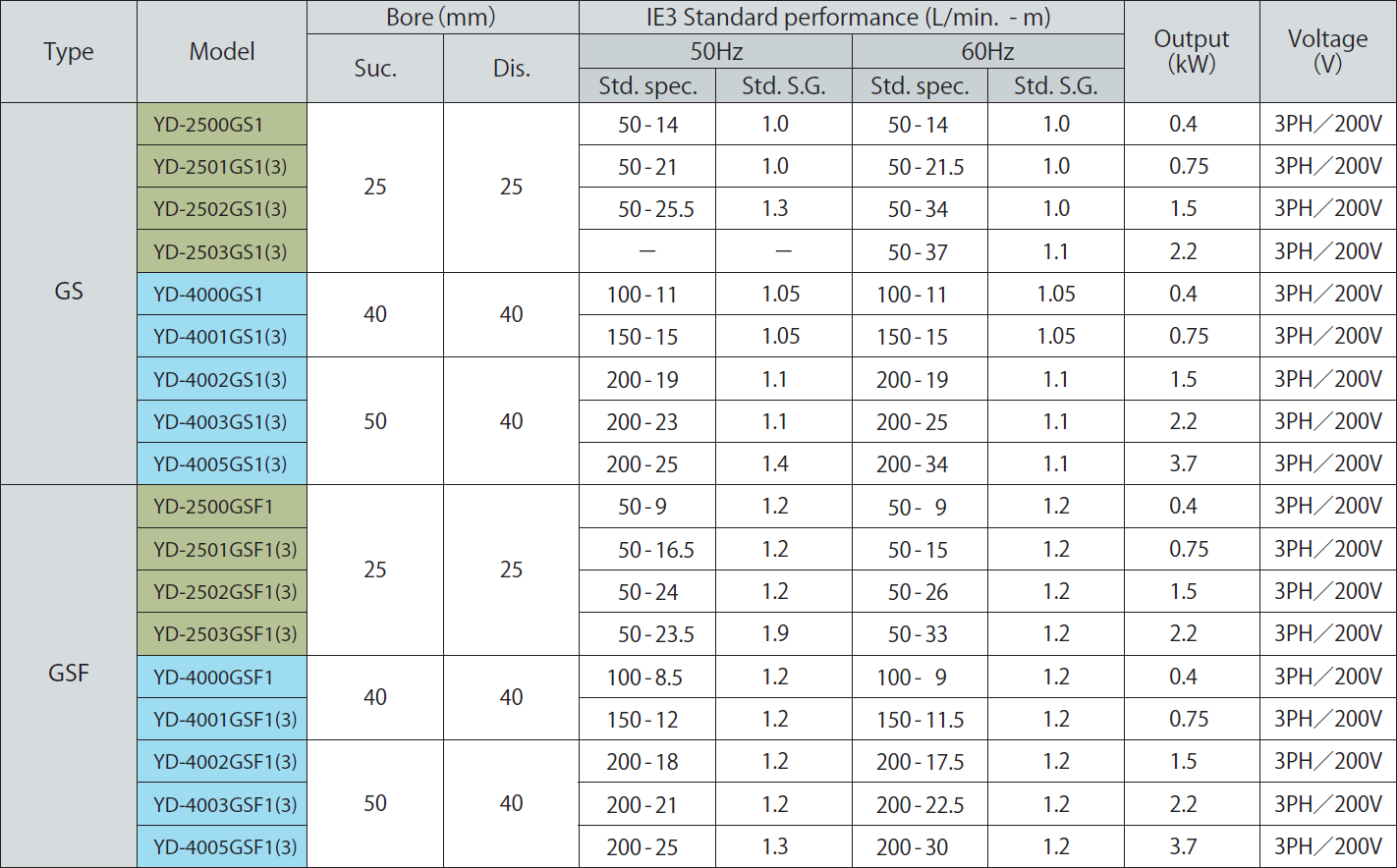

Specification

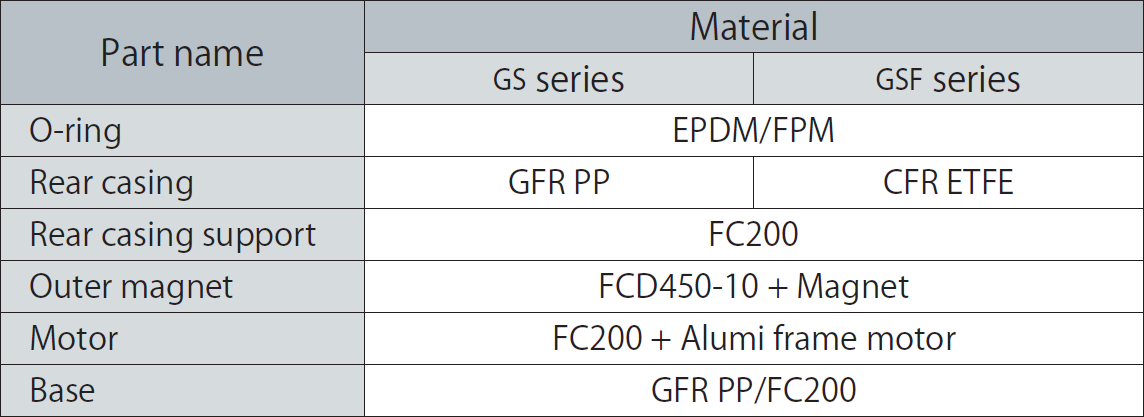

Material
Dimension

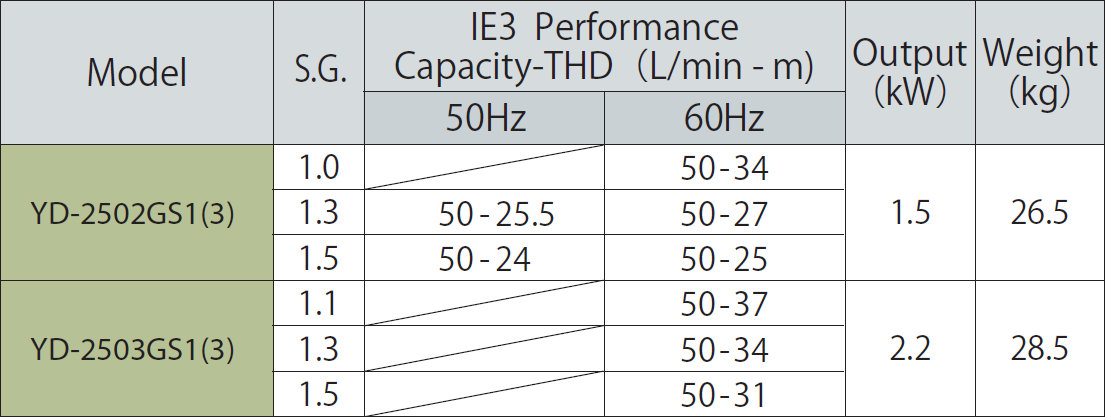

Standard Performance 2500GS Series

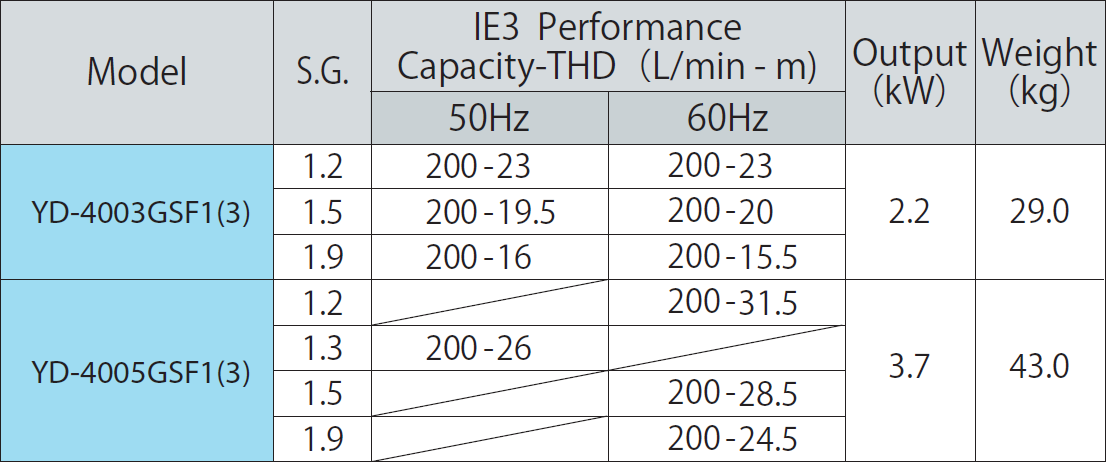

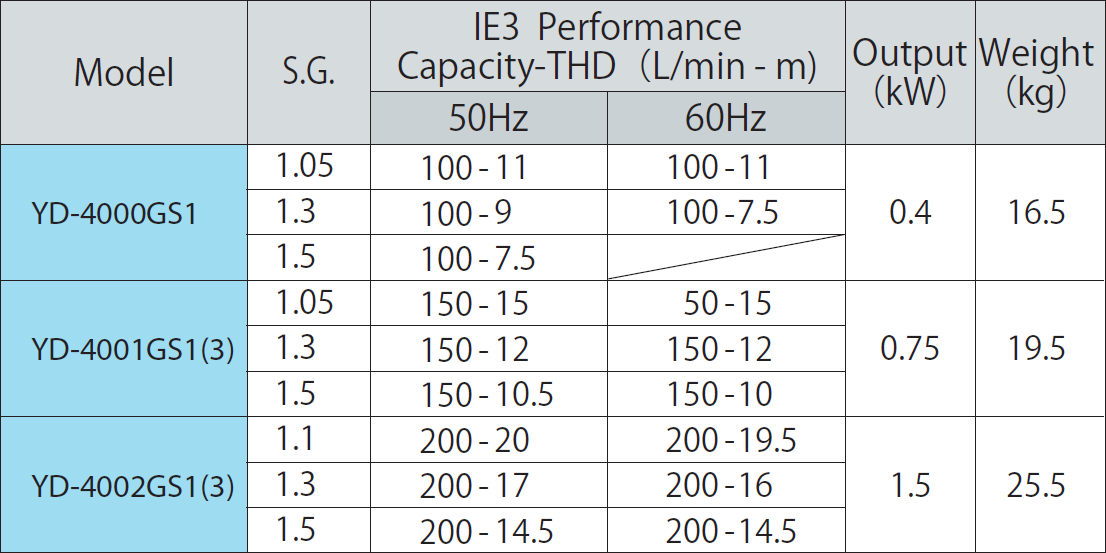

Standard Performance 4000GS Series

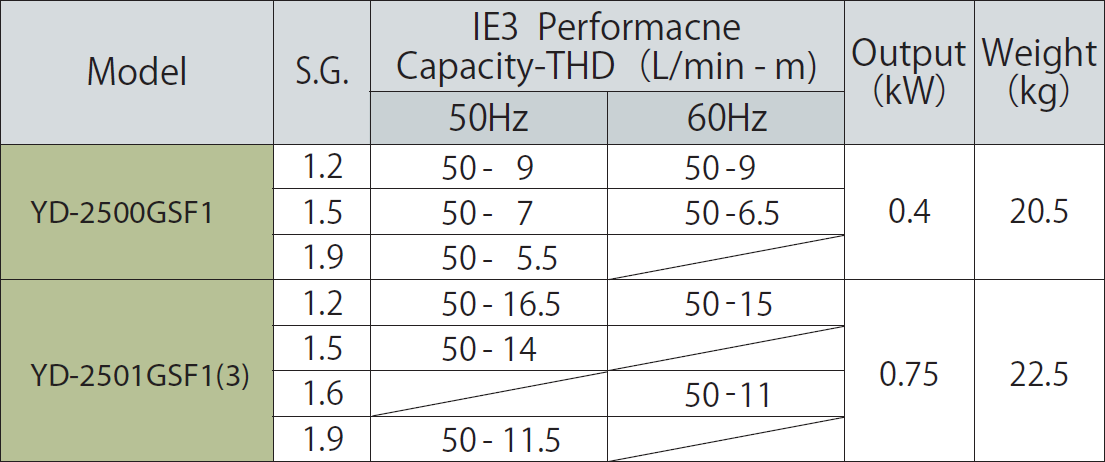

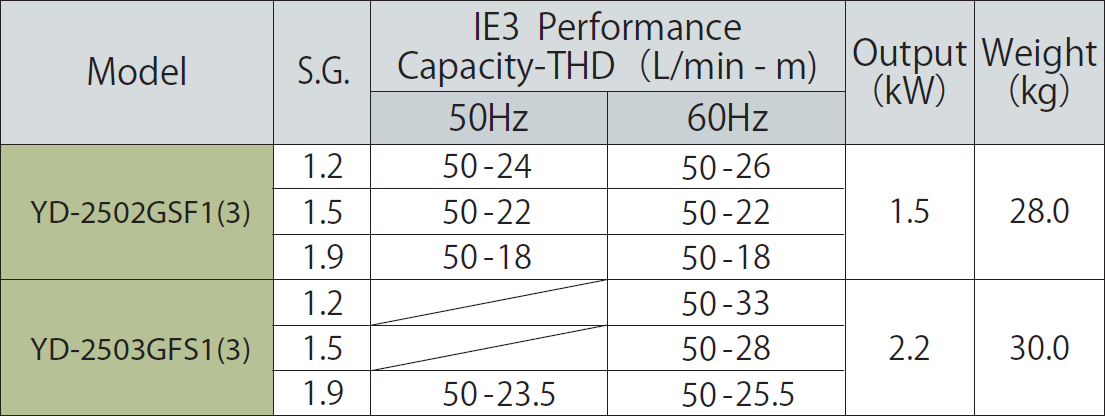

Standard Performance 2500GF Series
Standard Performance 4000GS Series
