WCC Coolant Saver YD-16CSN

-Two-In-One Unit (Pump And Separator)

-Adopting Doughnut-Shaped Float

-Usable For Shallow Tank

-Adopting Screw Feeder Pump

-No Consumable Parts For Separating Tank

Advantages

-For Better Working Condition

-For Saving Running Cost

-For Stability Of The Quality

Specification

- Flow Rate 1.2L/Min *Approx.

- Temperature Max40

- Float Type Doughnut-Shaped Float

- Pump Type Screw Feeder

- Separating Method Difference In Specific Gravity

- Main Material PP

- Motor 3PH.200V.50/60Hz.4P.60W (Indoor)

- Weight 5.7kg

- Required Space 170mm×170mm

- Lower Liquid Level 60mm(Lower Position Of Float)

- Liquid Fluctuation 45mm

- Upper Liquid Level 105mm(Upper Position Of Float)

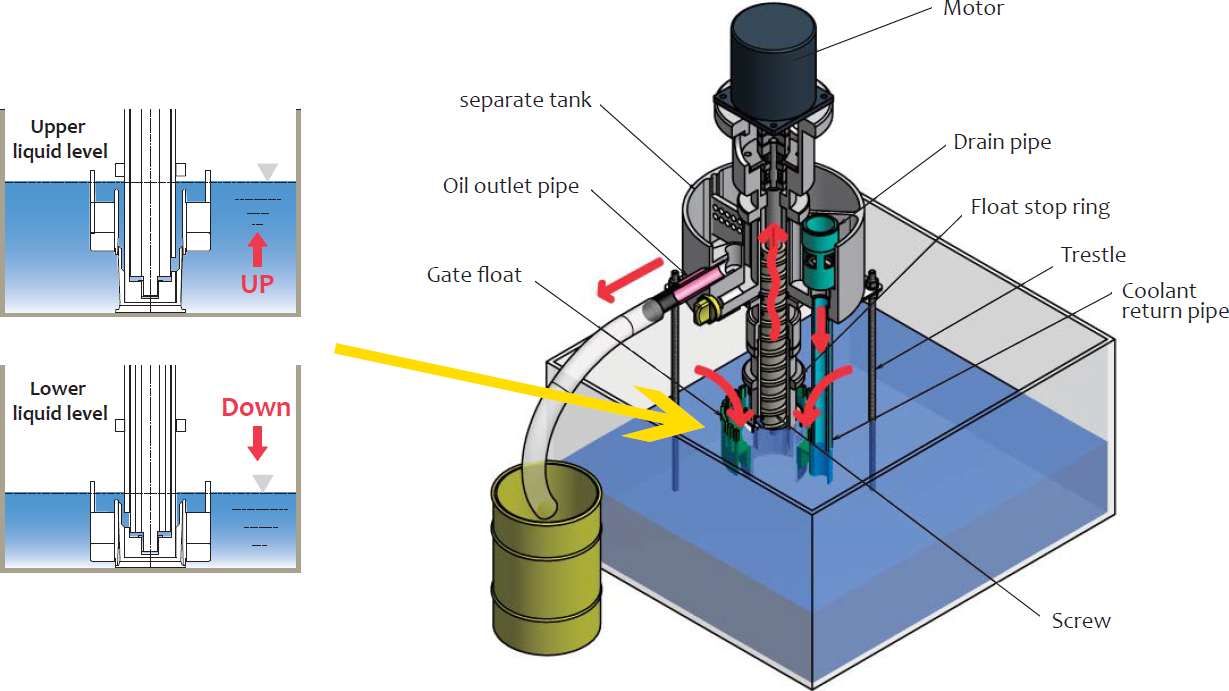

Doughnut-Shaped Float
