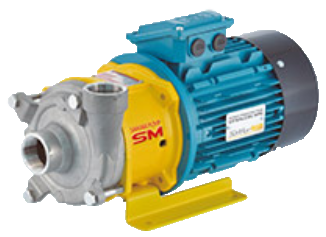

Sanwa StainlessMag SM

A New, Absolutely Leak-Free Stainless Mag Series Pumps Have Been Launched. The Best Sold And Most Reliable Sanwa Stainless Steel Magnet Drive Pumps Really Save Space And Energy.

Features

-Easy Cleaning --- Standard Open Impeller. Easy To Clean.

-Durable --- Sic Wet Bearing Is Adopted As A Standard, Ensures Durability And No Frictional Wear.

-Energy Saving --- Reduced Electric Consumption By 10% Due To Unique Design Concept.

Applications

-General Industries

-Chemical

-Food, Medical

-Semiconductors

-LCD

-Surface Treatment

-Environment

-Equipment-Use

Specifications

-Design Pressure 0.4 Mpa (Motor :0.37kw・0.55kw), 0.6 Mpa (Motor:0.75kw・1.5kw・2.2kw)

-Max. Temperature 100

-Min. Temperature -20

-Type Of Impeller Close (Motor :0.37kw・0.55kw), Open (Motor :0.75kw・1.5kw・2.2kw)

-PUMP 304 Stainless Steel

-O Ring EPDM (PO) {Option: FKM,VMQ}

-Bearing Sic (Ceramic)

-Motor 3Phase 200V/220V/380V/400V/440V

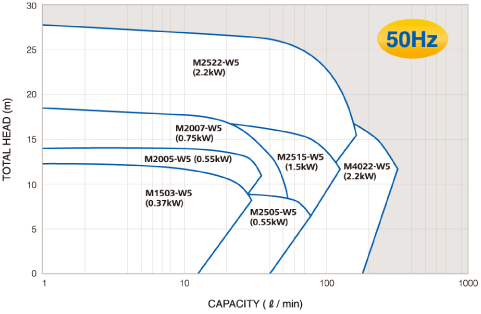

Selection Chart

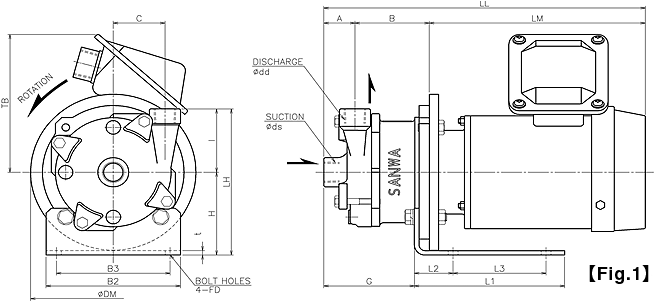

Outline Dimension
