Sanwa Process Seal Pump IC



Shaft With Sleeve Is Designed Not To Contact With Pumping Liquid And Free From Crevice Corrosion.

The Pumps Are Designed In A Wide Range Of Capacity With High Efficiency.

-Bore Size: 40 To 250mm

-Capacity: 0.05 To 18m3/Min

-Total Head: Max.130m

-Temperature:-30 To +200'C

Specification

Total Head (M) 130

Maximum Capacity(M3/Min) 18

Maximum Temperature () 200

Minimum Temperature () -30

Design Pressure (Mpag)  Max1.6

Bore [ Suction X Discharge] (Mm) 40 To 250

Piping Connection Jis 10k Rf, Asme 150lb Rf

Impeller Type Close

Material 304ss, 316ss, Alloy20

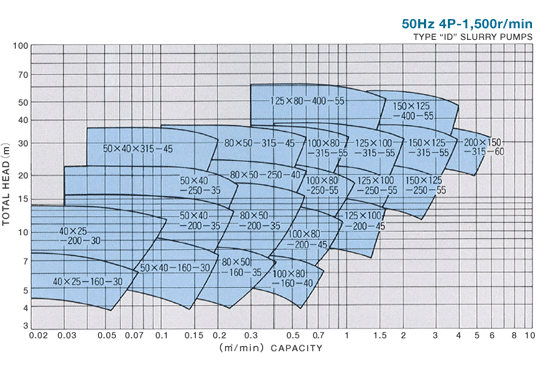

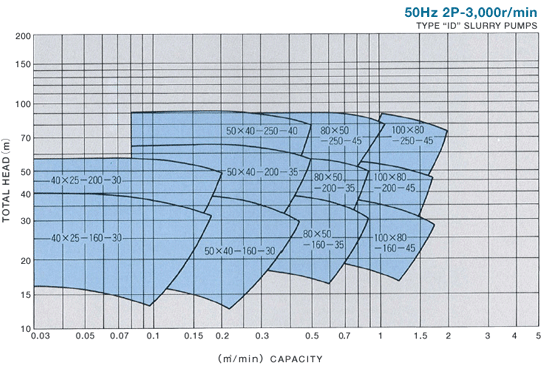

Performance Curve
