Sanwa Magpac MPCP

In-Line Magnet Drive Pump

-Installation Space Is Small For In-Line Pump.

-Excellent Corrosion Resistance For SUS316.

-Leak-Free Seal-Less Magnet Drive Pump.

-Eliminates Expensive Foundation Work.

-Directly Connected To The Existing Pipe.

Specifications

-Frequency(Hz) 50

-Maximum Total Head(M) 9

-Maximum Capacity (L/Min) 90

-Maximum Operating Temperature (C) 150

-Minimum Operating Temperature (C) -30

-Liquid Maximum Specific Gravity 2

-Liquid Maximum Viscosity (Mpa S,Cp) 100

-Design Pressure(Mpag) 0.6

­-Bore [Suction X Discharge](Mm)25×25

-Flange Standard JIS 10K RF

-Impeller Type Close

-Motor Output 400W

-(Synchronized) Rotation Speed (Rpm) 3000/3600

-Pump Material SCS13(SUS304)

-Remarks In-Line Pump

Applications

-Petrochemical Industry

-Chemical Plant

-For Cold And Hot Water Circulation

-For General Industries

-For Setting Variou Machines And Equipment

Selection Table

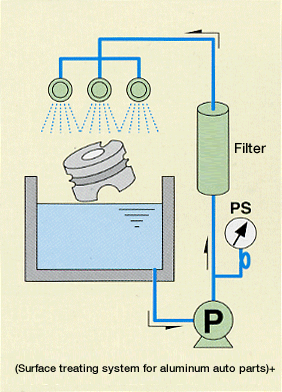

Application Example
