Sanwa META MTFO

Close-Coupled Process Pumps

-Close-Coupled Stainless Steel Magnet Drive Pumps

-The Series Covers Wide Capacity Range Up To 22 Kw.

-Greatly Reduces Total Cost, Including Spare Parts, Maintenance And Running Costs.

-Easy To Disassemble And Reassemble.

Specifications

-Frequency(Hz) 50

-Maximum Total Head(M) 80

-Maximum Capacity (L/Min) 1600

-Maximum Operating Temperature (C) 280

-Minimum Operating Temperature (C) -80

-Liquid Maximum Specific Gravity 2

-Liquid Maximum Viscosity (Mpa S,Cp) 300

-Design Pressure(Mpag) 1.6

­-Bore [Suction X Discharge](Mm) 40×25 To 100×80

-Flange Standard Jis 10k Rf, Asme 150lb Rf

-Impeller Type Close/Open

-Motor Output 2.2 To 22kw

-(Synchronized) Rotation Speed (Rpm) 1500,1800,3000,3600

-Pump Material Scs13(Sus304), Scs14(Sus316)

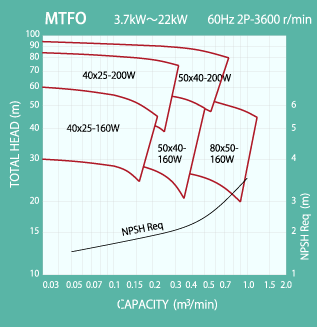

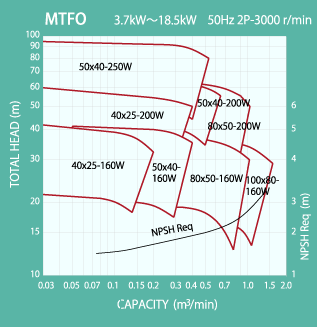

Selection Table
