Sanwa META MET

-Stainless Steel Magnet Drive Pumps Conform To The International Standard ISO2858 (JIS B 8313, 16bar).

-The Models In This Series Cover A Wide Range Of Motor Capacities, Up To 110 Kw, Connection 200x150mm.

-Applicable Pump Material Are SUS304, SUS316, ALLOY20, And Hastelloy-C Equivalent, So They Offer Excellent Corrosion Resistance.

Specifications

-Frequency(Hz) 50

-Maximum Total Head(M) 90

-Maximum Capacity (L/Min) 7000

-Maximum Operating Temperature (C) 450

-Minimum Operating Temperature (C) -100

-Liquid Maximum Specific Gravity 2

-Liquid Maximum Viscosity (Mpa S,Cp) 300

-Design Pressure(Mpag) 1.6

­-Bore [Suction X Discharge](Mm) 40×25 To 200×150

-Flange Standard JIS 10K RF, ASME 150LB RF

-Impeller Type Close/Open

-Motor Output 0.75 To 110kw

-(Synchronized) Rotation Speed (Rpm) 1500,1800,3000,3600

-Pump Material SCS13(SUS304), SCS14(SUS316)

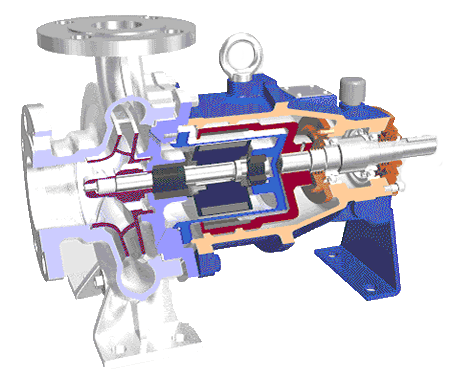

Pump Structure

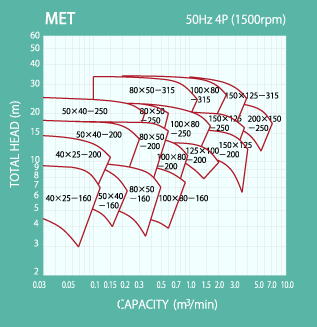

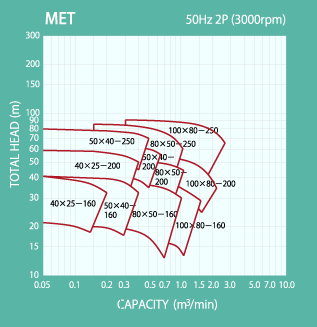

Selection Table
