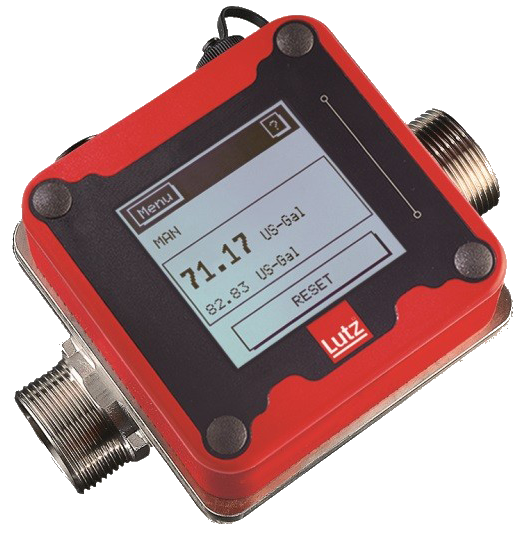

Lutz Flow Meter VA10

The First Flowmeter With Touchscreen Display And Backlight Impresses With Its Simple, On-Demand Display And Operability, Multilingual Interface And Compact Design. Due To The Rotating Swash Plate And A Magnet It Enables The Exact Measurement Of The Volume Flow And Measures Acids And Alkalis

Features & Advantages

-Measurement According To The Swash Plate Principle

-High Measuring Accuracy

-Variable Display Orientation

-Touchscreen Display With Self-Explanatory, Multilingual User Interface

-Measuring Range From 10 L/Min- 100 L/Min

-Simple Operation

Technical Data

-Housing Material: Edelstahl (1.4581/1.4571)

-Measuring Chamber (Material): Edelstahl (1.4581/1.4571)

-Seals (Material): FEP

-Magnet: PTFE (Polytetrafluorethylen) Gekapselt

-Temperature Of Medium (Max °F): 176

-Flow Volumes (Up To Max. GPM): 26,4

-Messgenauigkeit Kalibriert: ± 1%

-Viscosity (Up To Max. Cps): 5000

-Inlet Connection (Inch): 1 1/4"

-Outlet Connection (Inch): 1 1/4"

-Messgenauigkeit Kalibriert: ± 1%

-Voltage: 120

-Operating Pressure (Max. Psi): 145

-Frequency (Hz): 60

-Protection Type: IP55

-Version: With Volume Preselection, Nutating Disc Principle

-Type: VA10 / RM10 120 V
