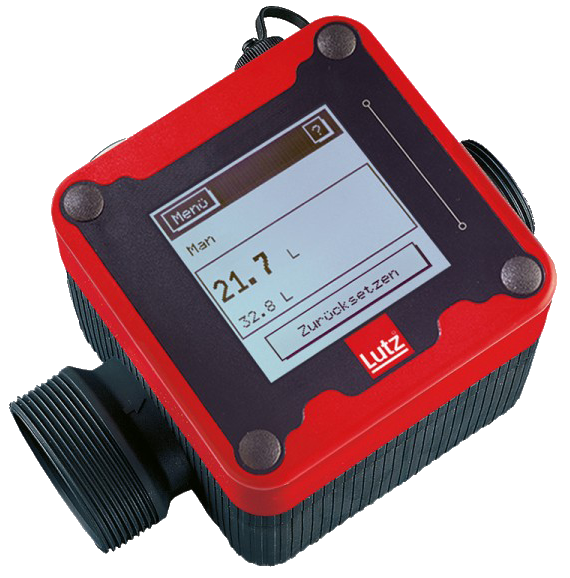

Lutz Flow Meter UN10 Ex

The First Flowmeter With Touchscreen Display And Backlight Impresses With Its Simple, On-Demand Display And Operability, Multilingual Interface And Compact Design. Due To The Rotating Swash Plate And A Magnet It Enables The Exact Measurement Of The Volume Flow And Measures Solvents.

Features & Advantages

-Measurement According To The Swash Plate Principle

-High Measuring Accuracy

-Variable Display Orientation

-Touchscreen Display With Self-Explanatory, Multilingual User Interface

-Measuring Range From 10 L/Min- 100 L/Min

-Approved According To Atex Directive 2014/34/Eu, Category 2

Technical Data

-Housing Material: Pps (Polyphenylensulfid)

-Measuring Chamber (Material): Lcp

-Seals (Material): Fep

-Magnet: Pps (Polyphenylensulfid) Gekapselt

-Temperature Of Medium (Max °F): Max. 284 °F

-Flow Volumes (Up To Max. Gpm): 26,4

-Messgenauigkeit Kalibriert: ± 1%

-Viscosity (Up To Max. Cps): 2000

-Inlet Connection (Inch): 2"

-Outlet Connection (Inch): 1 1/4"

-Messgenauigkeit Kalibriert: ± 1%

-Operating Pressure (Max. Psi): 58

-Protection Type: Ip55

-Version: Nutating Disc Principle

-Explosion Protection: Explosion-Proof

-Type: Un10 Ex

-Certification: Atex Approval
