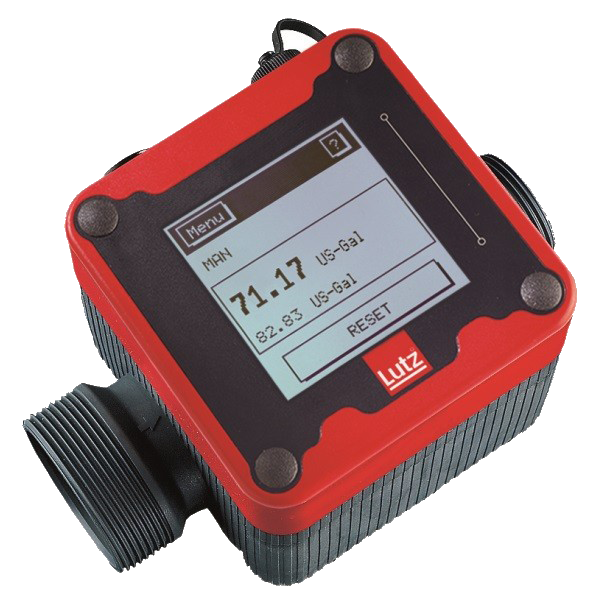

Lutz Flow Meter SL10

The First Flowmeter With Touchscreen Display And Backlight Convinces With Its Simple, Demand-Oriented Display And Operability, The Multilingual Interface And The Compact Design. Due To The Rotating Swash Plate And A Magnet, It Enables The Exact Measurement Of The Volume Flow And Measures Oils

Features & Advantages

-Measurement According To The Swash Plate Principle

-High Measuring Accuracy

-Variable Display Orientation

-Touchscreen Display With Self-Explanatory, Multilingual User Interface

-Measuring Range From 10 L/Min- 100 L/Min

-Simple Operation

Technical Data

-Housing Material: Ppo (Polyphenylenether)

-Measuring Chamber (Material): Ppo (Polyphenylenether), Pps (Polyphenylensulfid)

-Seals (Material): Fpm (Fluorinated Rubber)

-Magnet: Pps (Polyphenylensulfid) Gekapselt

-Temperature Of Medium (Max °F): Max. 284 °F

-Flow Volumes (Up To Max. Gpm): 26,4

-Messgenauigkeit Kalibriert: ± 1%

-Viscosity (Up To Max. Cps): 2000

-Inlet Connection (Inch): 2"

-Outlet Connection (Inch): 1 1/4"

-Messgenauigkeit Kalibriert: ± 1%

-Voltage: 120

-Operating Pressure (Max. Psi): 58

-Frequency (Hz): 60

-Version: With Volume Preselection, Nutating Disc Principle
