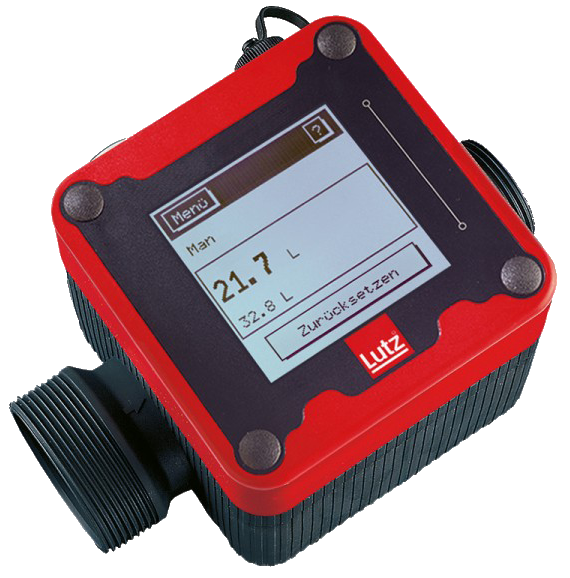

Lutz Flow Meter LM10 Ex

The First Flowmeter With Touchscreen Display And Backlight Impresses With Its Simple, On-Demand Display And Operability, Multilingual Interface And Compact Design. Thanks To The Rotating Swash Plate And A Magnet.

Features & Advantages

-Measurement According To The Swash Plate Principle

-High Measuring Accuracy

-Variable Display Orientation

-Touchscreen Display With Self-Explanatory, Multilingual User Interface

-Measuring Range From 10 L/Min- 100 L/Min

-Approved According To ATEX Directive 2014/34/EU, Category 2

Technical Data

-Housing Material: PPS (Polyphenylensulfid)

-Measuring Chamber (Material): LCP

-Seals (Material): FEP

-Magnet: Bafe / PA / Edelstahl 1.4401

-Temperature Of Medium (Max °F): Max. 284 °F

-Flow Volumes (Up To Max. GPM): 26,4

-Messgenauigkeit Kalibriert: ± 1%

-Viscosity (Up To Max. Cps): 2000

-Inlet Connection (Inch): 2"

-Outlet Connection (Inch): 1 1/4"

-Messgenauigkeit Kalibriert: ± 1%

-Operating Pressure (Max. Psi): 58

-Protection Type: IP55

-Version: Nutating Disc Principle

-Explosion Protection: Explosion-Proof

-Type: LM10 Ex

-Certification: Atex Approval
