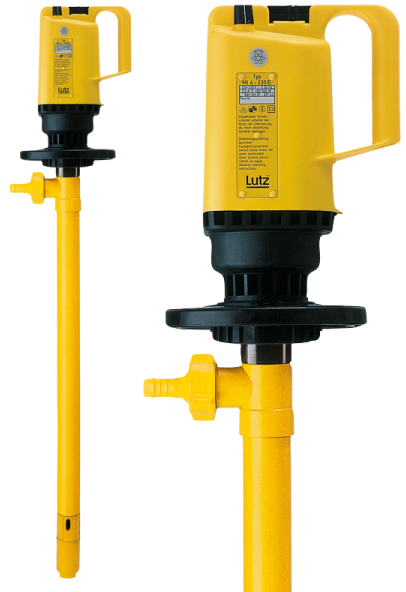

Lutz Dump Pump Lyes

The Drum Pump Is Suitable For Corrosive, Aqueous To Slightly Viscous Media.

Perfect For Siphoning Or Transferring Caustic Solutions.

39" / 1000 Mm (For Emptying Drums)

47" / 1200 Mm (For Container Emptying)



Features & Advantages

-Optionally With Electric Or Compressed Air Drive

-No Lubricants And Therefore No Contamination Of The Pumped Medium By Lubricants

-Optimized Drum Emptying

-Universally Resistant PTFE Shaft Bearings

-Maintenance Without Special Tools

-Seal Modules Of The Seal-Less (SL) Pump Can Be Replaced

MATERIAL

-Pump Tube (Material): PP (Polypropylene)

-Impeller (Material): PP (Polypropylene)

-Static Seal (Material): No Seals In Contact With The Medium

-Mechanical Seal (Material): No Seals In Contact With The Medium

-Bearing (Material): ETFE / PTFE

-Drive Shaft (Material): Edelstahl (1.4571)

OPERATING DATA

-Flow Rate (Up To Max. GPM)*: 23, 25

-Delivery Head (Up To Max. Ft)*: 52 , 69

-Temperature Of Medium (Max °F): 122

-Density (Up To Kg/Dm³): 1.4, 2.8

-Operating Pressure (Max. Psi): 87

-Viscosity (Up To Max. Cps)*: Up To 500 Cps (E.G. Hydraulic Oil), 1000

PUMP TUBE

-Type Of Impeller: Radial-Flow Impeller

-Seal Type: Sealless (SL)

-Immersion Length: From 39" (1000 Mm), From 47" (1200 Mm)

-Immersion Tube Diameter (Up To Mm): 1.6

-Thread (Inch) Outside: 1 1/4"

PROPERTIES

-Type Of Drive: Electric, Compressed Air

-Output (W): 640, 1000

-Voltage: 120

-Frequency (Hz): 60
