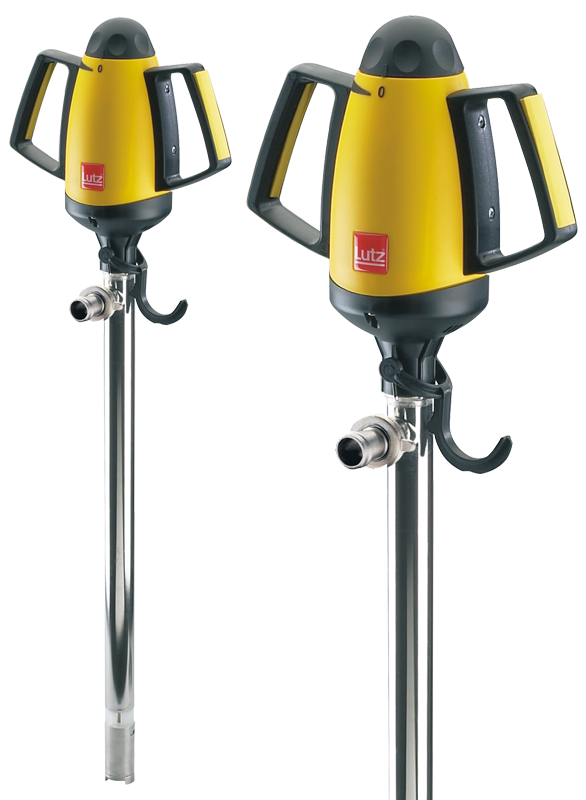

Lutz Dump Pump B2 Vario Niro

The Drum Pump B2 Vario Is Suitable For Low Viscosity, Aqueous To Slightly

Viscous Media. The Set Is Suitable For Removing Small Containers Such As

Canister, Hobbocks And Drums. The Pump Is Flexible At All Times And Thus

Saves Important Resources.

19" / 500 mm (Small Vessels)

27" / 700 mm (For Emptying Canisters)

39" / 1000 mm (For Emptying Drums)



Features & Advantages

-Sealless Design (SL) Conditionally Dry-Running Safe

-Infinitely Variable

-Powerful Motor With Improved Service Life.

-Easy To Service And Dismantle

MATERIAL

-Pump Tube (Material): Niro (Edelstahl)

-Impeller (Material): ETFE (Ethylene-Tetrafluorethylene Copolymer)

-Static Seal (Material): No Seals In Contact With The Medium

-Mechanical Seal (Material): No Seals In Contact With The Medium

-Bearing (Material): ETFE / PTFE

-Drive Shaft (Material): Edelstahl (1.4571)

OPERATING DATA

-Flow Rate (Up To Max. GPM)*: 17,4, 18,5

-Delivery Head (Up To Max. Ft)*: 21,3, 22

-Temperature Of Medium (Max °F): 194

-Density (Up To Kg/Dm³): 1.3

-Viscosity (Up To Max. Cps)*: 300

PUMP TUBE

-Type Of Impeller: Axial-Flow Rotor

-Seal Type: Sealless (SL)

-Immersion Length: Up To 19" (500 Mm), From 19" (500 Mm), From 39" (1000 Mm)

-Immersion Tube Diameter (Up To Mm): 1.1

-Thread (Inch) Outside: 1"

PROPERTIES

-Type of drive: Electric

-Output (W): 180, 200

-Voltage: 120, 230

-Frequency (Hz): 50, 60

-Version: Mit Drehzahlsteller
