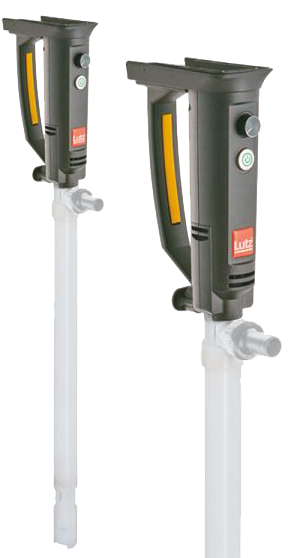

Lutz Dump Pump B2 Battery PVDF

The Drum Pump B2 Battery Is Suitable For Low Viscosity, Aqueous To Slightly

Viscous Media. The Set Is Suitable For The Removal Of Small Pads Such As

Canister Or Hobbocks. The Pump Is Flexible At All Times And Thus Saves

Important Resources.

19" / 500 mm (Small Vessels)

27" / 700 mm (For Emptying Canisters)

39" / 1000 mm (For Emptying Drums)



Features & Advantages

-BLDC Motor With High Efficiency Up To 70%

-Infinitely Variable

-High Battery Life

-Automatic Shutdown In Case Of Overload

-Sophisticated Quick Release

MATERIAL

-Pump Tube (Material): PVDF (Polyvinylidene Fluoride)

-Impeller (Material): ETFE (Ethylene-Tetrafluorethylene Copolymer)

-Static Seal (Material): No Seals In Contact With The Medium

-Mechanical Seal (Material): No Seals In Contact With The Medium

-Bearing (Material): ETFE / PTFE

-Drive Shaft (Material): Hastelloy C (2.4610)

OPERATING DATA

-Flow Rate (Up To Max. GPM)*: 21

-Delivery Head (Up To Max. Ft)*: 26

-Temperature Of Medium (Max °F): 194

-Density (Up To Kg/Dm³): 1.6

-Viscosity (Up To Max. Cps)*: 400

PUMP TUBE

-Type Of Impeller: Axial-Flow Rotor

-Seal Type: Sealless (SL)

-Immersion Length: Up To 19" (500 Mm), From 19" (500 Mm), From 39" (1000 Mm)

-Immersion Tube Diameter (Up To Mm): 1.26

-Thread (Inch) Outside: 1"

PROPERTIES

-Type Of Drive: Battery

-Output (W): 260

-Voltage: 21,6

-Capacity (Ah): 4
