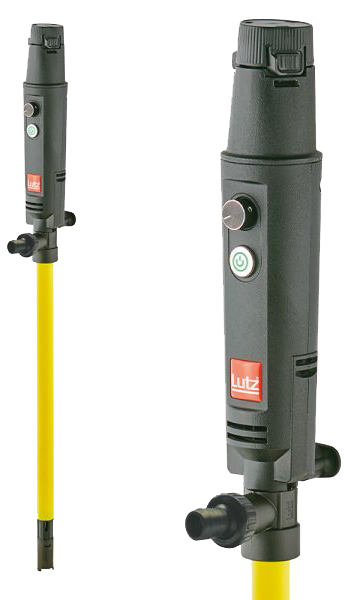

Lutz Dump Pump B1 Battery PP

The Drum pump B1 Battery is suitable for thin-bodied, aqueous to slightly viscous

media. The set is suitable for removing small containers such as Canister or

hobbocks. The pump is flexible at all times and thus saves important resources.

19" / 500 mm (Small Vessels)

27" / 700 mm (For Emptying Canisters)

39" / 1000 mm (For Emptying Drums)



Features & Advantages

-BLDC Motor With High Efficiency Of Up To 70

-Infinitely Variable

-Long Battery Life

-Automatic Shutdown On Overload

-Sophisticated Quick Lock

MATERIAL

-Pump Tube (Material): PP (Polypropylene)

-Impeller (Material): PP (Polypropylene)

-Static Seal (Material): No Seals In Contact With The Medium

-Mechanical Seal (Material): No Seals In Contact With The Medium

-Bearing (Material): ETFE / PTFE

-Drive Shaft (Material): Hastelloy C (2.4610)

OPERATING DATA

-Flow Rate (Up To Max. GPM)*: 5,3

-Delivery Head (Up To Max. Ft)*: 20

-Temperature Of Medium (Max °F): 104

-Density (Up To Kg/Dm³): 1.3

-Viscosity (Up To Max. Cps)*: 200

PUMP TUBE

-Type Of Impeller: Radial-Flow Impeller

-Seal Type: Sealless (SL)

-Immersion Length: Up To 19" (500 Mm), From 19" (500 Mm), From 39" (1000 Mm)

-Immersion Tube Diameter (Up To Mm): 0.98

-Thread (Inch) Outside: 1"

PROPERTIES

-Type of drive: Battery

-Output (W): 70

-Voltage: 10,8

-Capacity (Ah): 1,5
