3/8" Non-Metallic Diaphragm Pump
Part of our Compact Series of pumps, our 3/8” pumps feature big performance in a small package. They feature flow rates up to 10.6 GPM (40.1 LPM) and a wide range of material and porting configurations.
Features
-A favorite of OEM's around the world.
-Big delivery in a small package.
-Manufactured for complete corrosion resistance - constructed
-Efficiency - Simul-Shift valve provides ultra-positive, reliable shift signal
-Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
-Versatility - Center, End, and Dual Inlet / Outlet manifold configurations for your application needs
-Environmentally Sound - Bolted construction for leak-free fluid handling
-Serviceability - Ease of service through modular design
Accessories
-66073-1 Air Line Connection Kit: contains Piggyback -Filter / Regulator, pipe nipple & 5’ section of hose
-67388 Wall Mount Bracket
-66975 Cycle Counter Kit
-637442-X Dual Inlet / Outlet Kits
-67165-X Cycle Actuation Kit
-67386 Cycle Sensor Kit
-637428 Air Section Service Kit
-637429-XX Fluid Section Service Kit
Pump Casing Materials
-Polypropylene
-PVDF (Kynar)
-Groundable Acetal
Diaphragm Materials
-Santoprene
-Hytrel
-PTFE w/ Santoprene backer
-Viton
Specification
-Ratio: 1:1

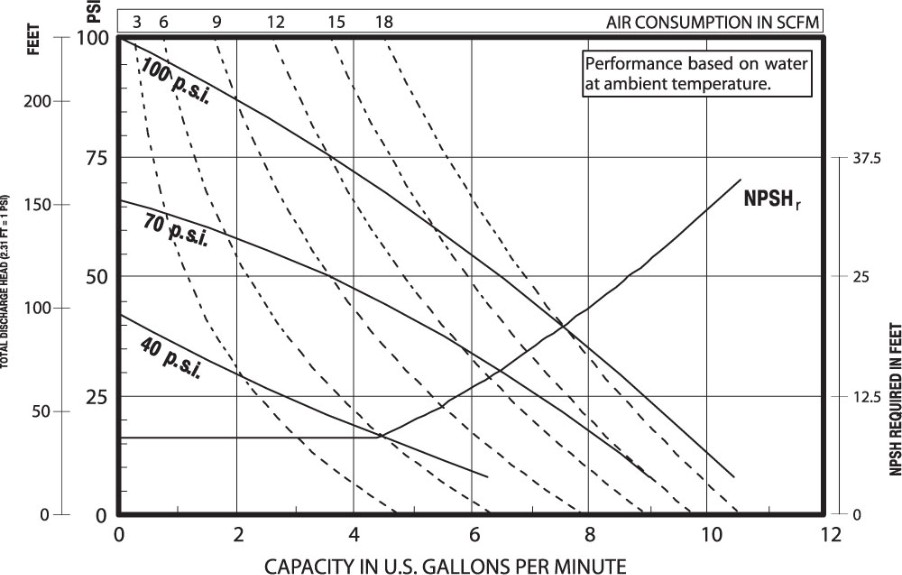

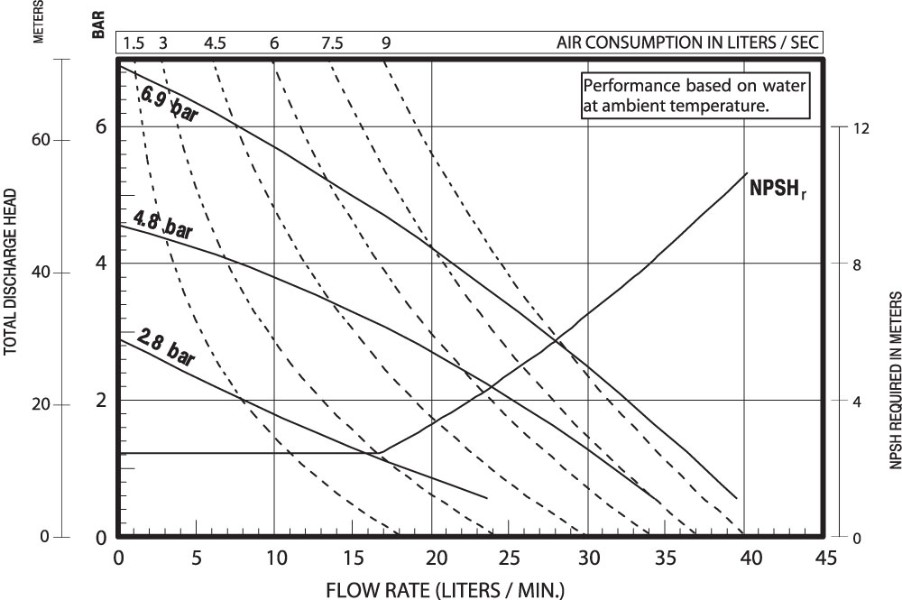

-Maximum Flow: 10.6 g.p.m. (40.1 l.p.m.)   8.7 (32.9) Flex check
-Air Inlet:  (Female) 1/4 - 18 P.T.F. SAE Short
-Max. operating pressure: 100 psi (6.9-bar)
-Suspended solids max. dia.: 1/16-in. (1.6-mm) Flex check (Fibers)
-Maximum dry suction lift:   ft (m) 9.25 (2.8)
-Sound Level: 70 PSI    60 Cycles/Min    72.7 db(A)
-Muffler: Integral, Included
