3/4" Non-Metallic Diaphragm Pump
-Maximum Flow gpm (lpm): 14.8 (56)
-Maximum Discharge Pressure psi (bar): 100 (6.8)
-Fluid Ports Inlet/Outlet (bsp): 3/4 - 14 N.P.T.F.-1 Rp 3/4(3/4-14 BSP, parallel)
-Material of Construction: Polypropylene
-Maximum Solids in (mm): 3/32 (2.4)
-Maximum Dry Suction Lift ft (m): 15 (4.5)
Features
-Efficiency - Simul-Shift valve provides ultra-positive, reliable shift signal
-Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
-Versatility - Compact design enables usage in limited space and other versatile locations
-Environmentally Sound - Bolted construction for leak-free fluid handling
-Serviceability - Easier service through modular design
Accessories
-66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator
-637438 Ported Exhaust Kit
-93110 Air Motor Muffler
-76763 Wall Mount Bracket
-637428 Air Section Service Kit
-637427-XX Fluid Section Service Kit
Pump Casing Materials
-Polypropylene
Diaphragm Materials
-Long Life PTFE
-Santoprene
-Hytrel
-PTFE w/ Santoprene backer
Specification
-Ratio: 1:1
-Maximum Flow: 14.8 g.p.m. (56 l.p.m.)
-Displacement per cycle: 0.032 Gallons (0.12 Liters)
-Air Inlet:  (Female) 1/4 - 18 P.T.F. SAE Short
-Max. operating pressure: 100 psi (6.9 bar)
-Suspended solids max. dia.: 3/32” (2.4 mm)
-Weight:  lbs (kg) 5.61 (2.54)
-Maximum dry suction lift: ft (m)  15.0 (4.5)
-Sound Level: 70 PSI    60 Cycles/Min   75.0 db(A)
-Muffler: Integral, Included

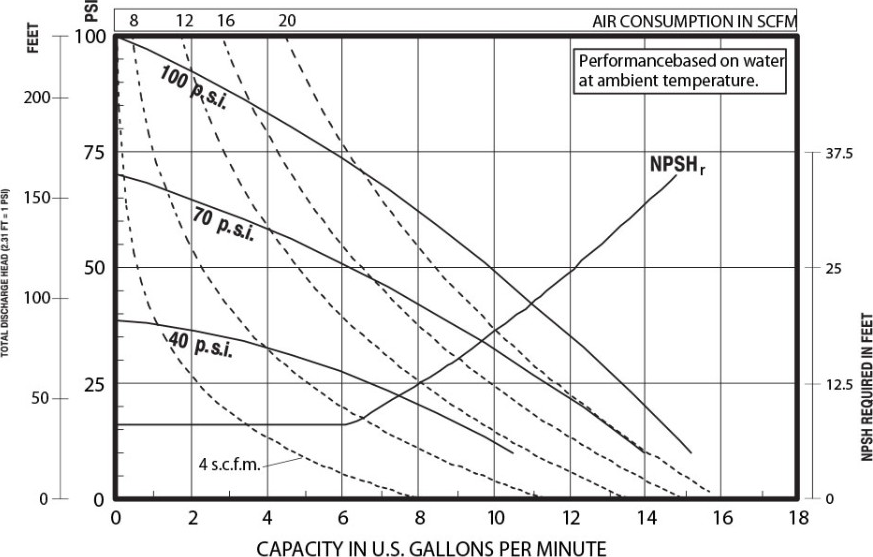

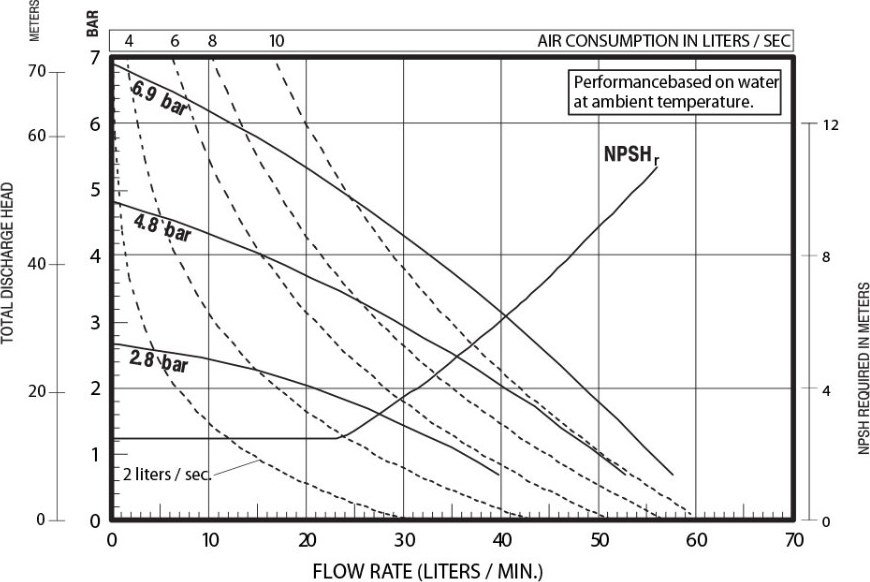

Performance Curve
