1/4" Non-Metallic Diaphragm Pump
Part of our Compact Series of pumps, our 1/4” pumps feature big performance in a compact package. They feature flow rates up to 5.3 GPM (20 LPM), a wide range of material options, multi-port versions and the unique hybrid male/female threaded fluid connections.
Benefits
-Compact Design
-360º Mounting Versatility when using optional flex checks
-Ideal for OEM Applications
-Creates a 31-feet of suction lift
Pump Casing Materials
-Polypropylene
-PVDF (Kynar)
-Groundable Acetal
Diaphragm Materials
-Santoprene
-Nitrile
-PTFE
-Hytrel

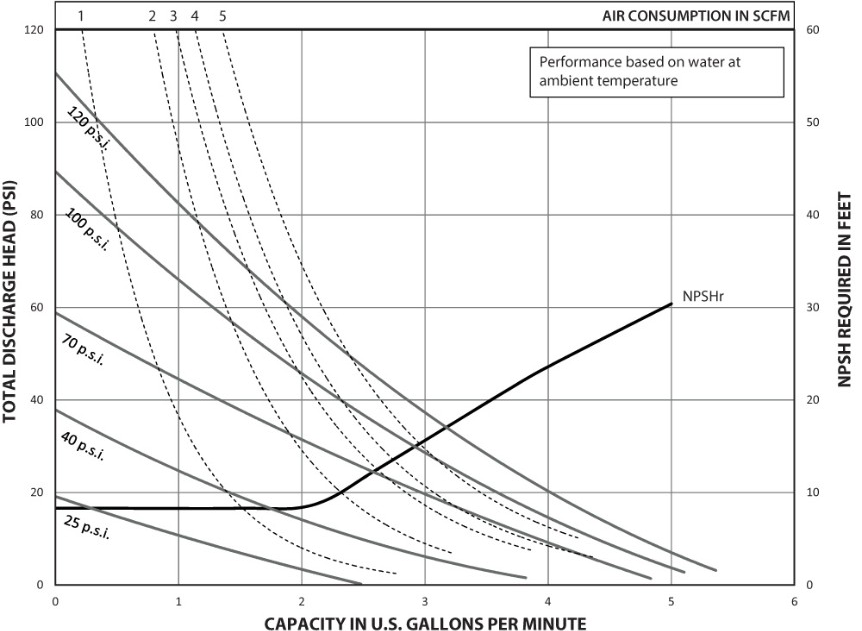

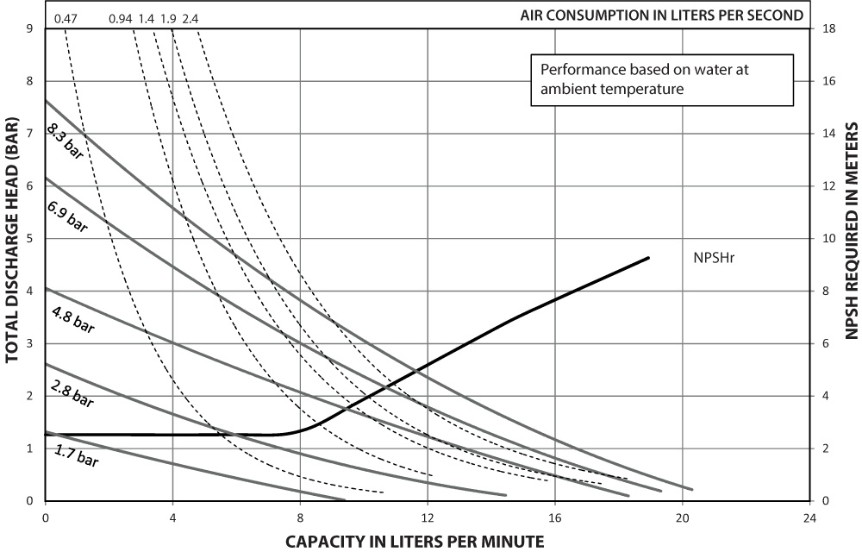

Specification
-Ratio: 1:1
-Maximum Flow:  5.3 g.p.m. (20 l.p.m.)
-Displacement per cycle: 0.019 Gallons (0.072 Liters)
-Air Inlet (Female): 1/4 - 18 PTF SAE Short
-Max. operating pressure psi (bar): 125 (8.6)
-Suspended solids max. dia. in.(mm): 1/16” (1.66)
-Maximum dry suction lift ft(m): 15 (4.6)
-Sound Level: 70 PSI    60 Cycles/Min    62.3 db(A)
-Muffler: Integral, Included
