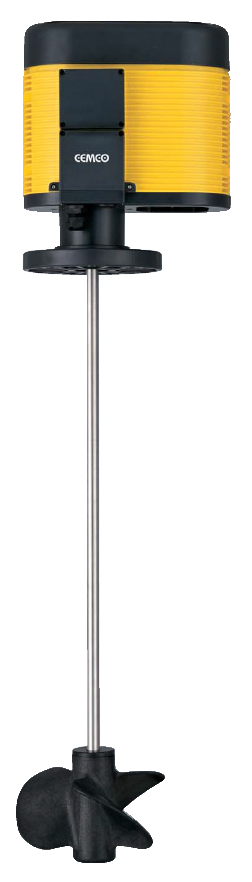

Cemco Mixer And Tank CCM

-It Has A Large Stirring Capability Thanks To A High Effi Ciency Impeller

-Light Weight

-Corrosion Resistance

-Mixer With Additional Functions

-High Cost Performance

-Unique Design

Use

-Stirring Of Plastic Reaction Tanks (1 To 2m3)

-Stirring Of Corrosive Liquid

-Stirring Of Strong Acid And Strong Alkali Liquid

-Dissolution Of Powder And Granulated And Flaky Chemicals

-Reaction Stirring Such As PH Neutralization At Water Treatment Plants

-Homogenization Of Liquid

Mixer Specifications CCM-150 Type

-Output (W) 150

-Electrical Voltage (V) 200 V380 V

-Rotating Speed (Rpm) 370/450

-Maximum Mixing Capacity (L) 2.000

-Operating Ambient Temperature (°C) 40°C

-Maximum Operating Temperature (°C) 80°C

-Maximum Liquid Viscosity (Cp) 300cp

-Maximum Liquid Density 1.3

-Deceleration Method Timing Belt

-Protection Level IP54

-Mounting JIS 10K65AF

-Shaft 16 × 900 L × SUS316 (Standard)

-Impeller 195 / 165 / PPC, 3 Bladed Propeller

-Weight Of Main Unit (Kg) Approx. 10 Kg

Mixer Specifications CCM-100 Type

-Output (W) 100

-Electrical Voltage (V) 100 V200 V

-Rotating Speed (Rpm) 370/450

-Maximum Mixing Capacity (L) 1.000

-Operating Ambient Temperature (°C) 40°C

-Maximum Operating Temperature (°C) 80°C

-Maximum Liquid Viscosity (Cp) 300cp

-Maximum Liquid Density 1.3

-Deceleration Method Timing Belt

-Protection Level IP54

-Mounting JIS 10K65AF

-Shaft 16 × 900 L × SUS316 (Standard)

-Impeller 175 / 145 / PPC, 3 Bladed Propeller

-Weight Of Main Unit (Kg) Approx. 10 Kg
