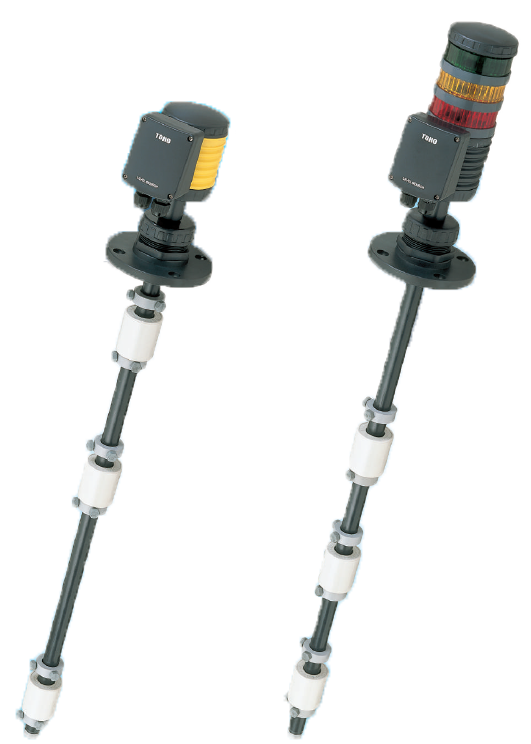

Cemco Level Sensor TL

-Terminal Box Is Made Of AES Which Offers Excellent Weather Resistance.

-Union-Type Attachment Flange Is Movable (JIS5K50A Standard)

-Comes Standard With Shock-Resistant HIPVC Stem.

-Low Cost And Short Delivery Times

-Manage Liquid Volumes Easily By Lamp Color

-Detached Model For Remote Management

Options

-Models With Built-In Power Relay Driven Directly By The Pump

-Models With Built-In Alarm Buzzer

-Other

Applications

-Liquid Level Management In Chemical Industries

-Liquid Level Control In Unit Devices

-Liquid Level Management In Production Lines

-Liquid Volume Management For Ingredients In Food Processing

-Liquid Level Control And Chemical Liquid Volume Management In Waste Water Treatment, And Other Processes.

-Various Other Liquid Volume And Level Management Applications

Model TL-101 Specifications

-Terminal Box Material AES

-Terminal Box Construction Water-Resistant

-Terminal Box Electrical Lead Inlet PF 1/4 Water-Resistant Plug

-Installation Dimensions JIS5K50A Flange, PF2B

-Installation Dimensions Material AES

-Float Dimensions Φ48×55H

-Float Material PP

-Float Specific Gravity >=0.7

-Float Viscosity (CP) 500

-Stem Outer Diameter Φ22

-Stem Material HI PVC, HT PVC

-Stem L Dimension (Max) 3950mm

-Electrical Ratings Maximum Contact Capacity AC 10VA, DC 10VA

-Electrical Ratings Maximum Operating Current AC 1.0A, DC 1.0A

-Electrical Ratings Maximum Operating Voltage AC 100V, DC 200V

-Electrical Ratings Maximum Number Of Detection Points 5

-Service Temperature Range() 0~50

-Defined Interval Dimension (MIN) 120mm

Model TLK-200 Specifications

-Terminal Box Material AES/Acrylic

-Terminal Box Construction Water-Resistant

-Terminal Box Electrical Lead Inlet PF 1/4 Water-Resistant Plug

-Installation Dimensions JIS5K50A Flange, PF2B

-Installation Dimensions Material AES

-Float Dimensions Φ48×55H

-Float Material PP

-Float Specific Gravity >=0.7

-Float Viscosity (CP) 500

-Stem Outer Diameter Φ22

-Stem Material HI PVC, HT PVC

-Stem L Dimension (Max) 3950mm

-Electrical Ratings Maximum 200VAC/3A (Resistance Load)

-Electrical Ratings Power Supply Voltage AC100V

-Electrical Ratings Power Consumption 1.5W(MAX)

-Electrical Ratings Display Method Ultra-High Luminance LED

-Electrical Ratings Maximum Number Of Detection Points 3

-Electrical Ratings Max Number Of Output Contact 3

-Electrical Ratings Max Number Of Lamps 3

-Service Temperature Range() 0~50

-Defined Interval Dimension (MIN) 120mm

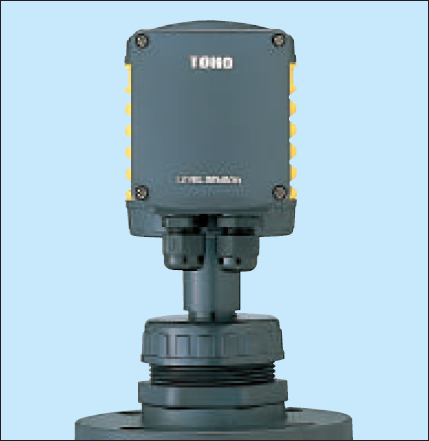

Model TL-101

Compact Outdoor Terminal Box

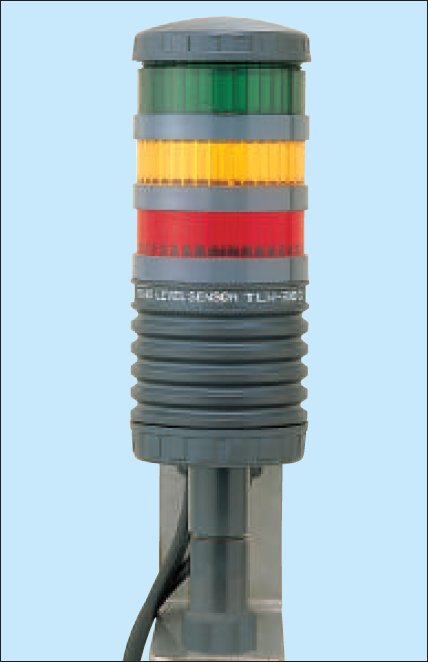

Model TLK-200S

Detached Model For Remote Management From Offices, Etc.

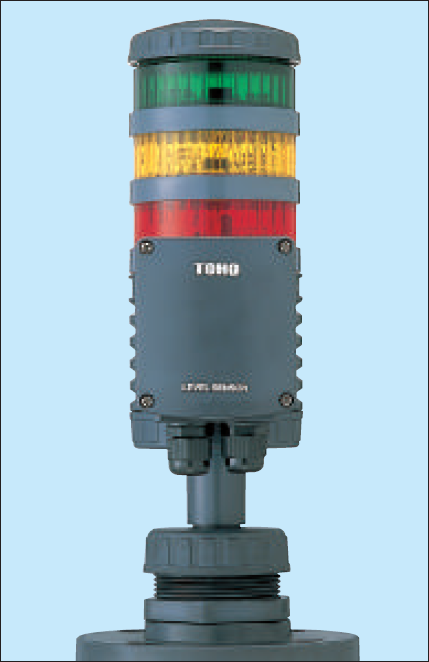

Model TLK-200

Integrated Model For On-Site Management

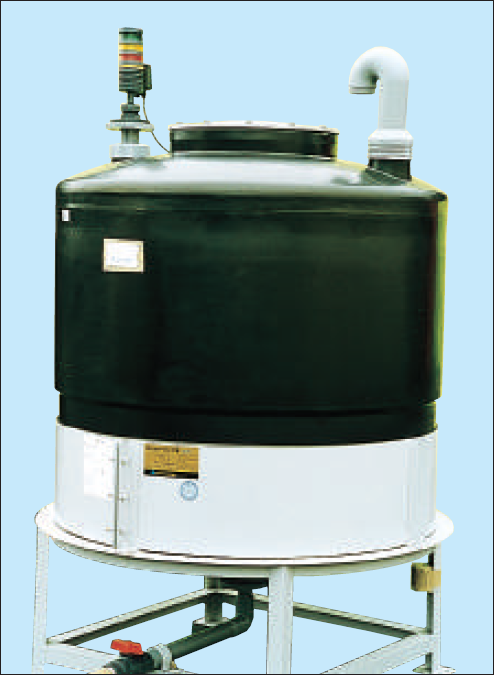

For Managing Liquid Volumes In Food Ingredient Tanks

Useful For Managing Ingredient Ordering Timing, And Preventing Accidents Such As Over-Injection From Tank Trucks.

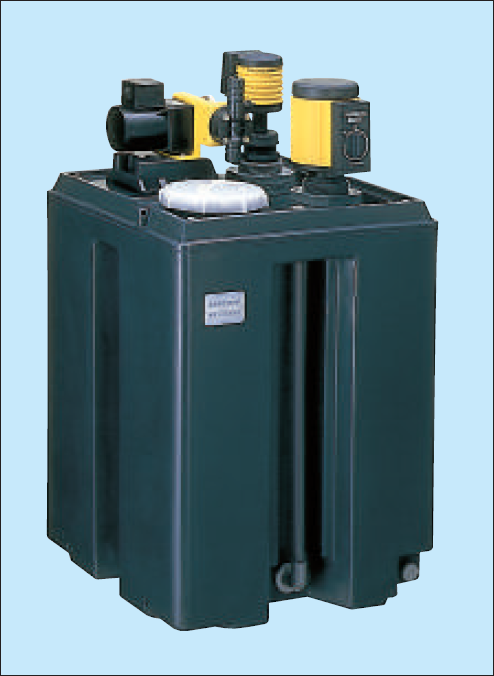

Best Choice For Implementing

"Full" Alarms On Chemical Turbid Water Tanks In Waster Water Treatment And Other Processes.

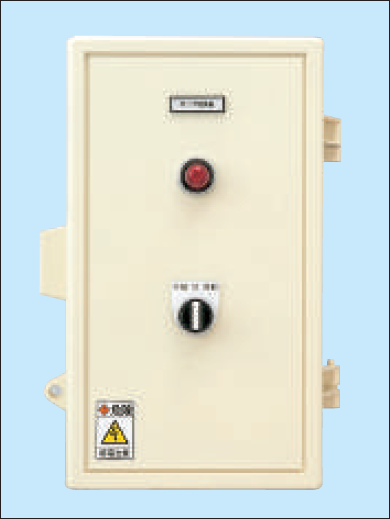

Control Panel (Option)

Available In Different Designs To Meet Different Specifications Such As For Controlling Pump Liquid Levels Using The Level Sensor.
