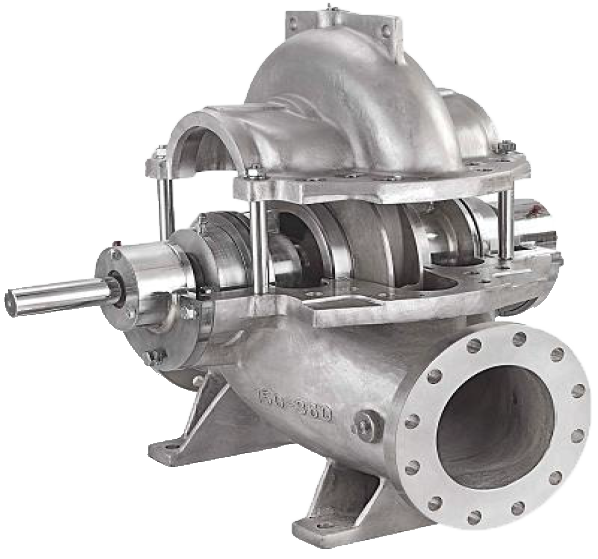

ASCO PUMP HS
HS pump is excellent split casing pump that are widely used in large amount water transportation, water lifting, fire fighting in water plant, offshore project, mining, factories, etc.
The technical parameter of type HS pumps:
-DN: 80-1400mm
-Q: 22-25200m3/h
-H: 7-280m
-T: -20 C~105C, -600C~200C
-Solid Contains <= 80mg/L
-Working Pressure <= 2.5Mpa <4Mpa
-Flange std DIN, ANSI, BS,JIS, GB
Casing
-Cast Iron
-Ductile Cast Iron
-Ni-resistant cast iron
-Cast Steel
-AISI304
-AISI316
-AISI316L
-Duplex stainless steel
Specification
-High Efficiency and low pulsation
-Wind performance range with up to 280m head
-Stable service and low maintenance
-Heavy duty design and long li
Impeller
-Cast Iron
-Ductile Cast Iron
-Ni-resistant cast iron
-Cast Steel
-Bronze
-AIS1304
-AIS1316
-AISI316L
-Duplex stainless steel
Shaft
-Carbon steel ASTM1045
-AISI304
-AISI316
-AISI316L
-Duplex Stainless steel

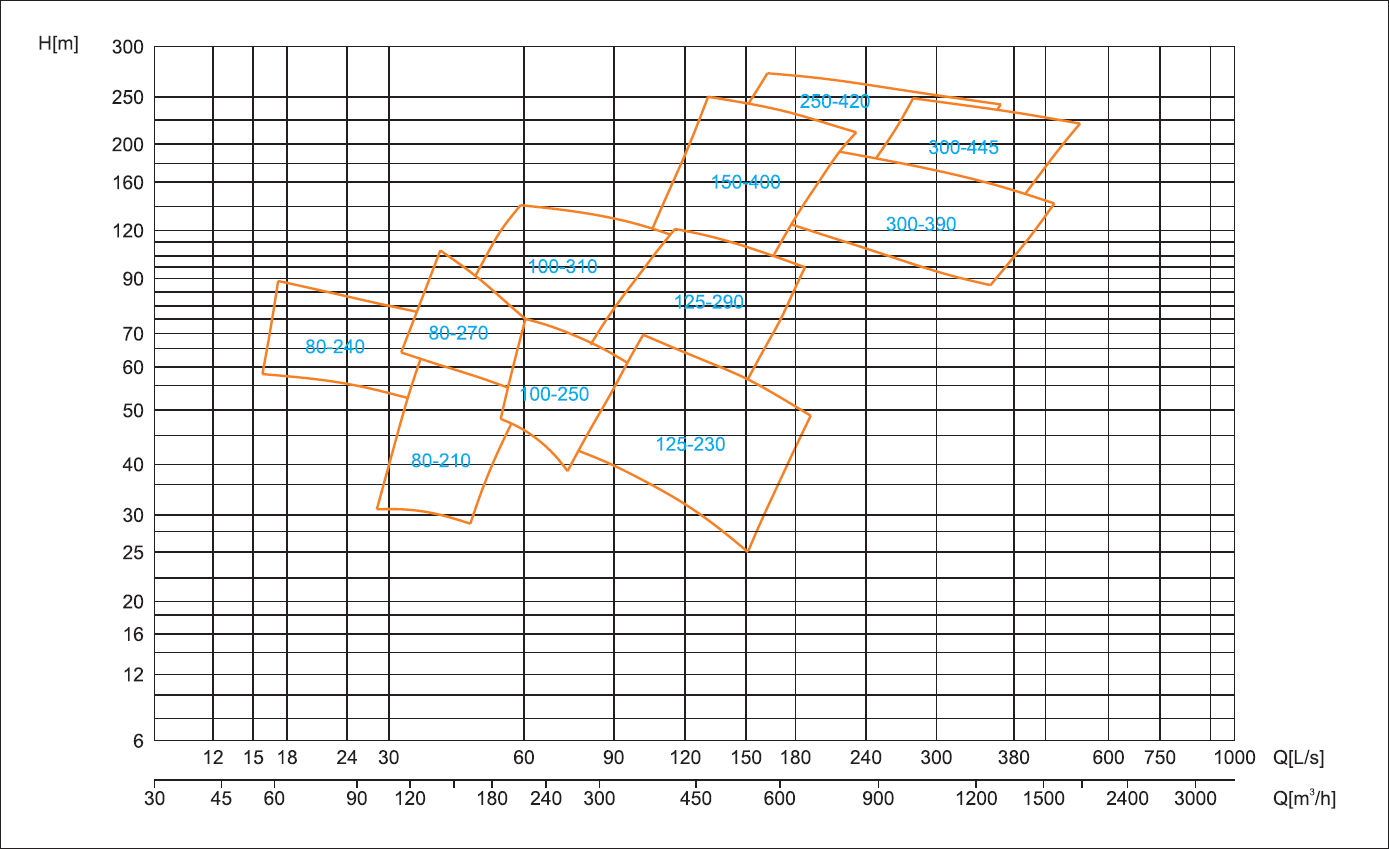

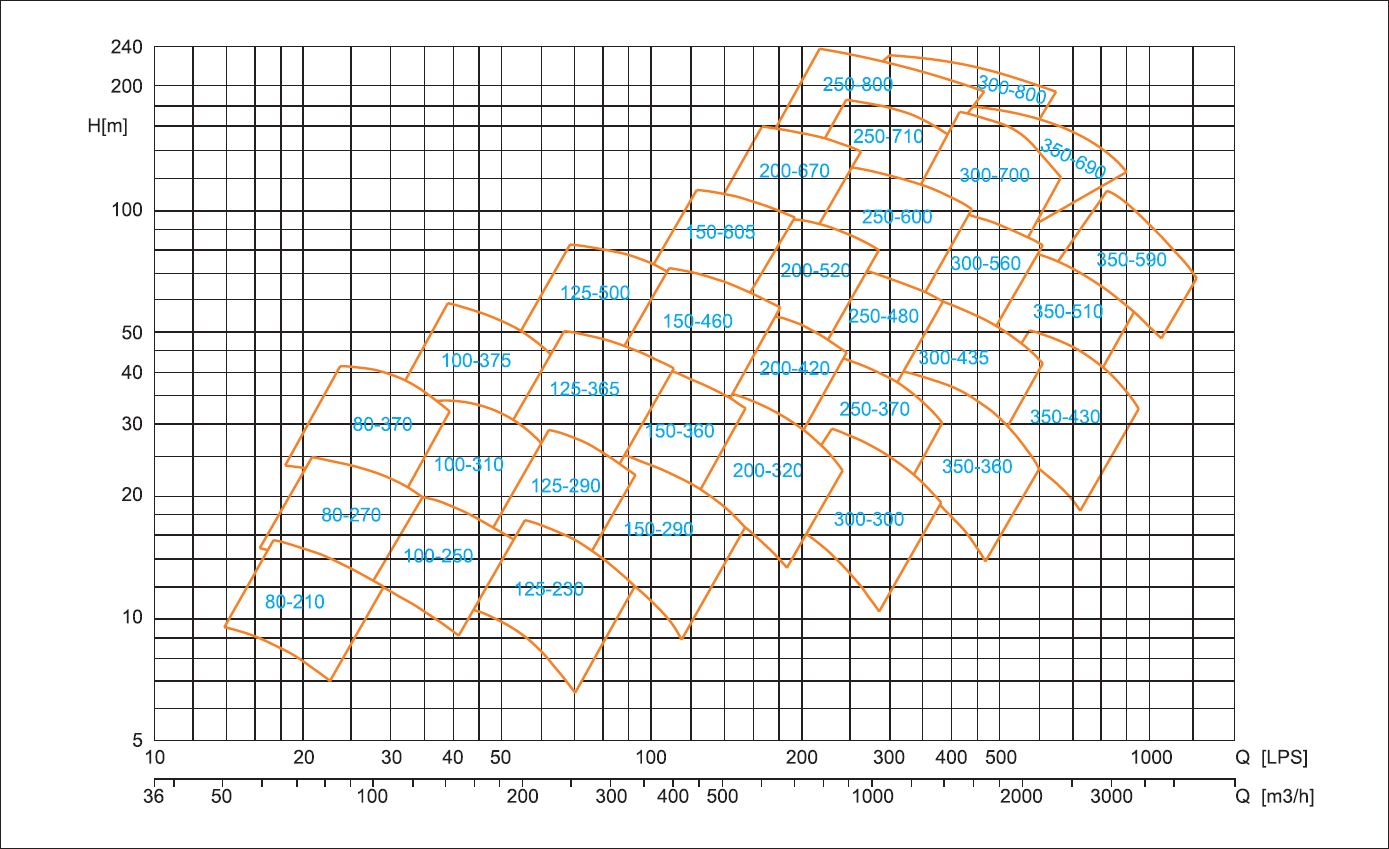

Selection Chart
n=2900 r/min
n=1450 r/min
