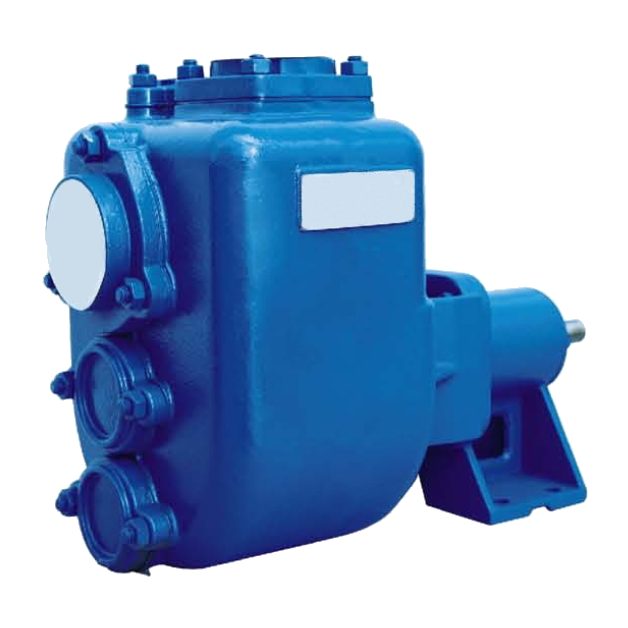

Asco Pump EJ
EJ series are self-priming, solids handling, resistant to abrasion. This pumps can handle liquids up to a viscosity of about 50 mm2/s. They are designed with the advanced device Maintenance Hole and Wear Plate, easy to clean and flush. EJ pumps have wide applications in industry, marine and waste treatment.
Applications
-Waste Water Treatment Plant
-Portable Emergency Fire Fighting
-Marine - Ballasting & Bilge
-Liquid Transfer: clean or dirty water, mixed liquids, abrasive or corrosive liquids
-Civil Engineering
-Smoke Scrubbing
-Cooling & Circulation
Operating Data
-Flow Rate(Q) 2-130 I/s
-Head(H) 4-60 m
-Speed 14503500 rpm; lower speed on request
-Max Temperature 105 C
-Working Pressure 0.6 MPa
-Max Solids Size 76 mm


Material
-Part Standard Material Options on request
-Casing Cast Iron Ductile Iron
-Impeller Ductile Iron Bronze / ASTM304 / ASTM316
-Wear Plate Cast iron Bronze / ASTM304 / ASTM316
-Shaft ASTM1045 ASTM304 / ASTM316 / ASTM420
-Shaft Seal Mechanical Seal
Design & Structure
-Design Performance and Dimensions referring to the European standard
-Structure Semi-open impeller, Single- Suction, Self-priming, Maintenance Hole, Wear Plate.
-DN (mm) 40-200
-Flange Pump casings are casted with flanges; Screw flange for discharge size < 100 mm
